Texas Instruments recommends a 4-layer PCB with a solid ground plane on the bottom layer, and the TMP275AIDRG4 placed near the center of the board to minimize thermal gradients. Additionally, it's recommended to use a thermal relief pattern around the device to reduce thermal conductivity to the PCB.
The TMP275AIDRG4 has a limited output current of 10mA. To handle this, engineers can use a buffer amplifier or an op-amp to amplify the output signal, or use a voltage follower to provide a high-impedance input to the ADC. Additionally, the output can be connected to a high-impedance load, such as a microcontroller's analog input pin.
Texas Instruments recommends a 2-point calibration procedure, where the device is calibrated at 0°C and 100°C using a precision temperature source. The calibration data can then be stored in the microcontroller's memory and used to correct the temperature readings. Additionally, the TMP275AIDRG4 has an internal calibration circuit that can be used to trim the device's offset and gain errors.
To ensure accurate temperature readings, engineers can use noise reduction techniques such as filtering, shielding, and grounding. Additionally, the TMP275AIDRG4 has a built-in 50Hz/60Hz rejection filter that can be enabled to reduce noise from power lines. It's also recommended to use a differential input ADC and to place the TMP275AIDRG4 as close as possible to the ADC input pins.
The maximum cable length for the TMP275AIDRG4's output signal depends on the specific application and the noise environment. As a general rule, Texas Instruments recommends keeping the cable length as short as possible (less than 10cm) to minimize signal degradation and noise pickup. If a longer cable is required, engineers can use a shielded cable, a twisted pair, or a differential output driver to reduce noise and signal degradation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMP275AIDRG4 Overview

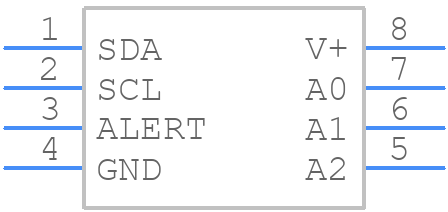

Use the download button to access the TMP275AIDRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP27,
or try a keyword search, such as Temperature Sensors
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
