The TMP411BD should be placed as close as possible to the thermal source, with the thermal pad facing downwards. A solid copper pour on the PCB can help to dissipate heat. Avoid placing the device near high-current traces or heat sources, and ensure good airflow around the device.
When the TMP411BD is not connected to an ADC, the output voltage can float. To prevent this, connect a 10kΩ pull-down resistor to ground or a weak pull-down circuit to ensure a defined output state.
The maximum cable length for the TMP411BD's output signal depends on the specific application and noise environment. As a general rule, keep the cable length as short as possible (less than 10 inches) to minimize noise and signal degradation. If longer cables are necessary, use shielded cables and consider adding signal conditioning or buffering.
The TMP411BD has an internal calibration, but for high-accuracy applications, external calibration may be necessary. Use a precision temperature source and a high-accuracy ADC to calibrate the device. Apply a known temperature to the device and measure the output voltage. Repeat this process at multiple temperatures to create a calibration curve.
The TMP411BD's response time to temperature changes is typically around 10-15 seconds, depending on the thermal mass of the device and the surrounding environment. This response time can be affected by factors such as thermal conductivity, airflow, and device placement.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMP411BD Overview

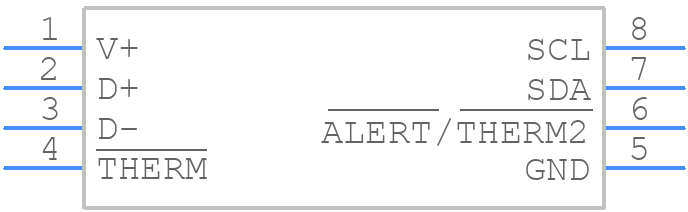

Use the download button to access the TMP411BD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP41,
or try a keyword search, such as Temperature Sensors
