TMP411CDR - Texas Instruments

Description: Remote and Local Temperature Sensor with N-Factor and Series-R Correction in MSOP-8

Download TMP411CDR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

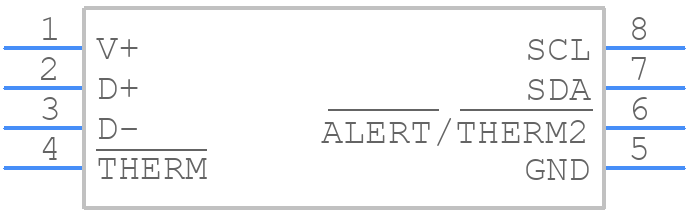

TMP411CDR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP411CDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
TMP411CDR - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

TMP411CDR Details

  • Manufacturer Part Number:

    TMP411CDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    2.5 Cel

  • Additional Feature:

    HYSTERESIS 500 MV

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.03 mA

  • Operating Temperature-Max:

    127 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

TMP411CDR Frequently Asked Questions (FAQs)

  • The TMP411CDR can measure temperatures from -50°C to 150°C, but it's recommended to operate within the -20°C to 125°C range for optimal accuracy.
  • To configure the TMP411CDR for remote temperature sensing, connect the remote diode (e.g., TMP117) to the TMP411CDR's D+ and D- pins, and set the TMP411CDR's address to 0x48 or 0x49 using the A0 and A1 pins.
  • The typical current consumption of the TMP411CDR is around 10 μA in shutdown mode and 250 μA in active mode, but this can vary depending on the operating frequency and other factors.
  • To handle the TMP411CDR's 12-bit ADC resolution, you can use a microcontroller or other digital interface to read the temperature data and convert it to a usable format, such as Celsius or Fahrenheit.
  • The TMP411CDR's response time to temperature changes is typically around 10 ms, but this can vary depending on the thermal mass of the system and other factors.
