TMP422AIDCNRG4 - Texas Instruments

Description: Board Mount Temperature Sensors +/-1degC Remote and Local Temp SENSOR

Download TMP422AIDCNRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

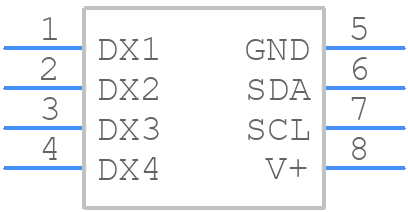

TMP422AIDCNRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP422AIDCNRG4 - Texas Instruments PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - DCN (R-PDSO-G8)
click to zoom
3D Models
TMP422AIDCNRG4 - Texas Instruments - 3D model - SOT23 (8-Pin) - DCN (R-PDSO-G8)
click to zoom

TMP422AIDCNRG4 Details

  • Manufacturer Part Number:

    TMP422AIDCNRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOT-23, 8 PIN

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    2.5 Cel

  • Body Breadth:

    1.6 mm

  • Body Height:

    1.175 mm

  • Body Length or Diameter:

    2.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.038 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Termination Type:

    SOLDER

TMP422AIDCNRG4 Frequently Asked Questions (FAQs)

  • The typical power consumption of the TMP422AIDCNRG4 is 10 μA (microamperes) when operating at 3.3 V.
  • The TMP422AIDCNRG4 has an accuracy of ±1°C (±1.8°F) over the operating temperature range of -20°C to 125°C (-4°F to 257°F).
  • The response time of the TMP422AIDCNRG4 is typically 30 ms (milliseconds) for a 63.2% change in temperature.
  • Yes, the TMP422AIDCNRG4 can operate in high-temperature environments up to 150°C (302°F) for short periods of time, but it is recommended to operate it within the specified operating temperature range of -20°C to 125°C (-4°F to 257°F) for optimal performance and reliability.
  • No, the TMP422AIDCNRG4 is not compatible with 5 V systems. It is designed to operate at a supply voltage of 2.7 V to 3.6 V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP422AIDCNRG4 Overview

Use the download button to access the TMP422AIDCNRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP42, or try a keyword search, such as Temperature Sensors
