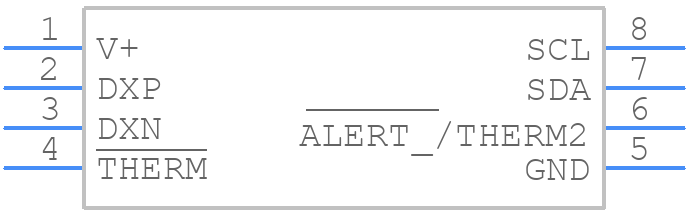

TMP431ADGKR - Texas Instruments

TMP431ADGKR Details

• Manufacturer Part Number:

  TMP431ADGKR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  MSOP

• Pin Count:

  8

• Country Of Origin:

  Mainland China, Malaysia, Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog IC - Other Type:

  ANALOG CIRCUIT

• JESD-30 Code:

  S-PDSO-G8

• JESD-609 Code:

  e4

• Length:

  3 mm

• Moisture Sensitivity Level:

  2

• Number of Channels:

  2

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.1 mm

• Supply Current-Max (Isup):

  0.045 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
