TMP435ADGSR - Texas Instruments

Description: Temperature Sensor Digital, Local/Remote -40°C ~ 125°C 12 b 10-VSSOP

Download TMP435ADGSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

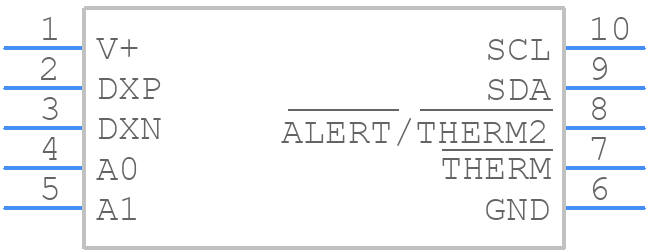

TMP435ADGSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP435ADGSR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
TMP435ADGSR - Texas Instruments - 3D model - Small Outline Packages - DGS0010A
click to zoom

TMP435ADGSR Details

  • Manufacturer Part Number:

    TMP435ADGSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.045 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TMP435ADGSR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TMP435ADGSR involves placing the device near the thermal source, using a solid copper pour on the PCB to dissipate heat, and minimizing thermal barriers such as vias and soldermask.
  • Calibration involves comparing the TMP435ADGSR's output to a known temperature reference point, and adjusting the device's offset and gain to achieve high accuracy. This process may require specialized equipment and software.
  • The maximum cable length for the TMP435ADGSR's digital output depends on the specific application and noise environment. As a general guideline, cable lengths up to 10 meters are possible with proper shielding and termination.
  • To minimize EMI, use a shielded cable, keep the TMP435ADGSR away from high-frequency sources, and use a common-mode filter or ferrite bead on the digital output lines.
  • The POR timing for the TMP435ADGSR is typically around 10 ms, during which the device's output is undefined. After POR, the device requires an additional 10-20 ms to stabilize its output.
