TMP441AIDCNT - Texas Instruments

Description: Multi-Address Remote and Local Temp Sensor with Auto Beta, N-Factor and Series-R Correction in SOT23

Download TMP441AIDCNT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

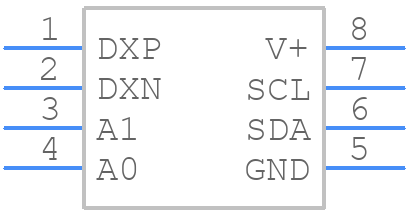

TMP441AIDCNT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP441AIDCNT - Texas Instruments PCB footprint - Other - Other - SOT65P280X145-8N
click to zoom
3D Models
TMP441AIDCNT - Texas Instruments - 3D model - Other - SOT65P280X145-8N
click to zoom

TMP441AIDCNT Details

  • Manufacturer Part Number:

    TMP441AIDCNT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    1 Cel

  • Body Breadth:

    1.6 mm

  • Body Height:

    1.175 mm

  • Body Length or Diameter:

    2.9 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.045 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Termination Type:

    SOLDER

TMP441AIDCNT Frequently Asked Questions (FAQs)

  • The TMP441AIDCNT can operate from -40°C to 125°C, but the accuracy specifications are only guaranteed from -20°C to 100°C.
  • The TMP441AIDCNT can be configured for remote temperature sensing by connecting the remote diode to the D+ and D- pins, and using the internal diode as a reference. The device can then be programmed to measure the temperature of the remote diode.
  • The internal temperature sensor of the TMP441AIDCNT has an accuracy of ±1°C from -20°C to 100°C, and ±2°C from -40°C to 125°C.
  • Yes, the TMP441AIDCNT is suitable for high-accuracy temperature measurement applications, with a typical accuracy of ±0.5°C from -20°C to 100°C.
  • The TMP441AIDCNT can be interfaced with a microcontroller using the I2C or SMBus interface. The device has a 7-bit or 10-bit address, and can operate at clock frequencies up to 400 kHz.
