Please enter a minimum 3 letters or numbers
Technical Content
Part Image

TMP442BDCNT - Texas Instruments

Description: Dual Remote and Local Temp Sensor with Auto Beta, N-Factor and Series-R Correction in SOT-23

Download TMP442BDCNT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

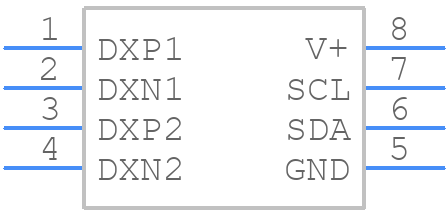

TMP442BDCNT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP442BDCNT - Texas Instruments PCB footprint - Other - Other - SOT65P280X145-8N
click to zoom
3D Models
TMP442BDCNT - Texas Instruments - 3D model - Other - SOT65P280X145-8N
click to zoom

TMP442BDCNT Details

  • Manufacturer Part Number:

    TMP442BDCNT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    1 Cel

  • Body Breadth:

    1.6 mm

  • Body Height:

    1.175 mm

  • Body Length or Diameter:

    2.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.045 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Termination Type:

    SOLDER

TMP442BDCNT Frequently Asked Questions (FAQs)

  • The TMP442BDCNT can operate from -40°C to 125°C, but the accuracy of the temperature measurement is specified from -20°C to 100°C.
  • The TMP442BDCNT does not require calibration. It is a digital temperature sensor with an internal calibration that provides accurate temperature measurements without the need for external calibration.
  • The typical current consumption of the TMP442BDCNT is 10 μA, making it suitable for low-power applications.
  • Yes, the TMP442BDCNT has a high level of noise immunity due to its digital output and internal filtering, making it suitable for use in noisy environments.
  • The TMP442BDCNT has a standard I2C interface that can be easily interfaced with most microcontrollers. The device address is fixed at 0x4C, and the temperature data is available in a 16-bit register.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TMP442BDCNT Overview

Use the download button to access the TMP442BDCNT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP44, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to TMP442BDCNT

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

TMP442BDCNT Alternates

Showing results

Image Part Number Model
Part Image TMP442BDCNR Texas Instruments

Serial Switch/Digital Sensor, 12 Bit(s), 1Cel, Rectangular, 8 Pin, Surface Mount
Part Image TMP442ADCNT Texas Instruments

Serial Switch/Digital Sensor, 12 Bit(s), 1Cel, Rectangular, 8 Pin, Surface Mount
