TMP464AIRGTR - Texas Instruments

Description: 5-Channel (4-Remote and 1-Local) High-Accuracy Remote and Local Temperature Sensor

Download TMP464AIRGTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

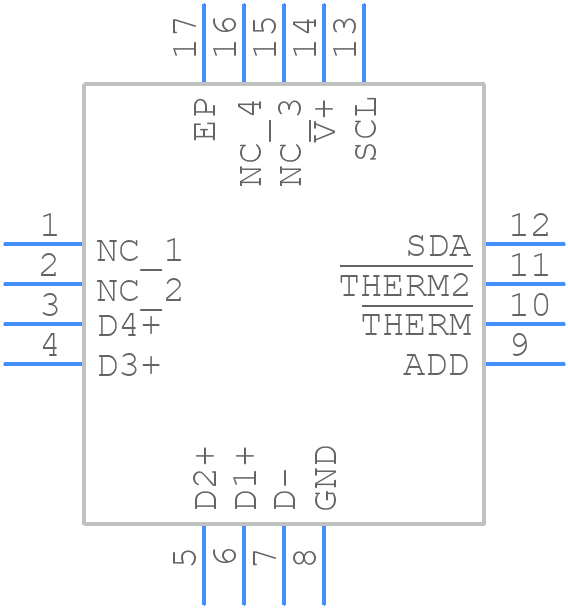

TMP464AIRGTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP464AIRGTR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT0016C_a
click to zoom
3D Models
TMP464AIRGTR - Texas Instruments - 3D model - Quad Flat No-Lead - RGT0016C_a
click to zoom

TMP464AIRGTR Details

  • Manufacturer Part Number:

    TMP464AIRGTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-06-18

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    0.75 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    1 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    13

  • Number of Terminals:

    16

  • Operating Current-Max:

    0.375 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

TMP464AIRGTR Frequently Asked Questions (FAQs)

  • The TMP464AIRGTR can operate from -40°C to 125°C, making it suitable for a wide range of industrial and automotive applications.
  • The TMP464AIRGTR has an accuracy of ±1°C (max) over the operating temperature range, making it suitable for applications that require high accuracy temperature measurement.
  • The conversion time for the TMP464AIRGTR is 30 ms (max), allowing for fast temperature measurements in real-time applications.
  • Yes, the TMP464AIRGTR is designed to operate in high-vibration environments, making it suitable for use in industrial and automotive applications where vibration is present.
  • Yes, the TMP464AIRGTR is compatible with both 3.3V and 5V systems, making it a versatile solution for a wide range of applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP464AIRGTR Overview

Use the download button to access the TMP464AIRGTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP46, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
