TMP468AIRGTT - Texas Instruments

Description: ±0.75⁰C High-Accuracy Multi-channel Remote and Local Temperature Sensor

Download TMP468AIRGTT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

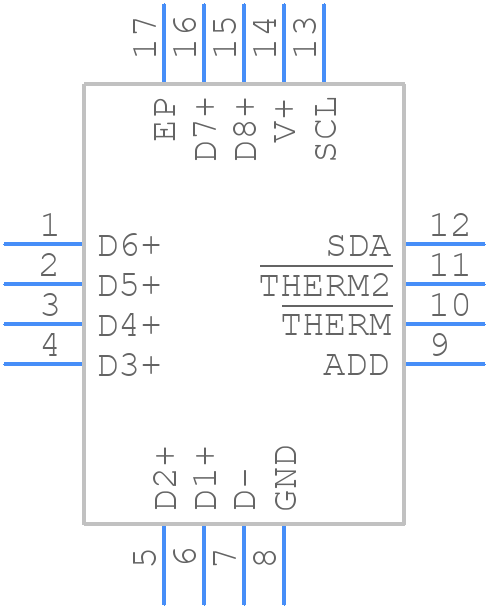

TMP468AIRGTT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP468AIRGTT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT0016C height 1
click to zoom
3D Models
TMP468AIRGTT - Texas Instruments - 3D model - Quad Flat No-Lead - RGT0016C height 1
click to zoom

TMP468AIRGTT Details

  • Manufacturer Part Number:

    TMP468AIRGTT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    0.35 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    1 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    13

  • Number of Terminals:

    16

  • Operating Current-Max:

    0.375 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Termination Type:

    SOLDER

TMP468AIRGTT Frequently Asked Questions (FAQs)

  • The TMP468AIRGTT can operate from -40°C to 125°C, but the accuracy specifications are only guaranteed from -20°C to 100°C.
  • The TMP468AIRGTT does not require calibration. It is a digital temperature sensor that provides a calibrated digital output. However, you may need to perform a one-time initialization to set the device's address and other configuration settings.
  • The conversion time for the TMP468AIRGTT is approximately 30 ms. This is the time it takes for the device to perform a temperature conversion and make the result available on the I2C bus.
  • Yes, the TMP468AIRGTT supports multi-drop configuration. You can connect multiple devices to the same I2C bus, and each device can be addressed individually using its unique address.
  • The power consumption of the TMP468AIRGTT is typically 10 μA in active mode and 1 μA in shutdown mode. However, the actual power consumption may vary depending on the operating frequency and other factors.
