TMP75AID - Texas Instruments

Description: Temperature Sensor with I2C/SMBus Interface in Industry Standard LM75 Form Factor & Pinout

Download TMP75AID Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

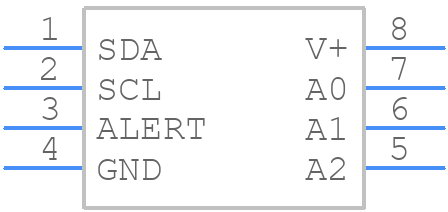

Symbol
TMP75AID - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP75AID - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - +soic d
click to zoom
3D Models
TMP75AID - Texas Instruments - 3D model - Small Outline Packages - +soic d
click to zoom

TMP75AID Details

  • Manufacturer Part Number:

    TMP75AID

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    GREEN, PLASTIC, MS-012AA, SOIC-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    1 Cel

  • Additional Feature:

    HYSTERESIS 500 MV

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.085 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

TMP75AID Frequently Asked Questions (FAQs)

  • The maximum cable length for the TMP75AID is 10 meters (33 feet) to ensure accurate temperature readings. Longer cable lengths may introduce noise and affect accuracy.
  • The TMP75AID has a built-in power-on reset (POR) delay of approximately 10 ms. To handle this, ensure that your system's power supply is stable and wait for at least 10 ms after power-up before accessing the device.
  • To minimize noise and ensure accurate temperature readings, keep the TMP75AID away from high-current carrying traces and noisy signals. Use a dedicated analog ground plane and keep the device's VCC and GND pins as close as possible to the device.
  • The TMP75AID is calibrated at the factory, but for high-accuracy applications, you may need to perform a one-point or two-point calibration. Consult the datasheet and application notes for calibration procedures and equations.
  • The TMP75AID's response time to temperature changes is approximately 10 seconds. This is due to the thermal mass of the device and the thermal resistance of the package.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP75AID Overview

Use the download button to access the TMP75AID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP75, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
