TMP75CID - Texas Instruments

Description: 1.4V-Capable Temperature Sensor with I2C/SMBus Interface with One-Shot Mode in LM75 Pinout

Download TMP75CID Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

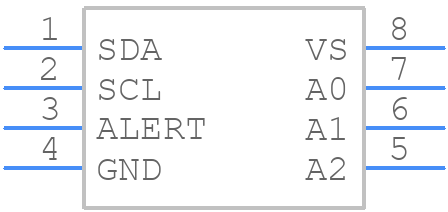

Symbol
TMP75CID - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP75CID - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
TMP75CID - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

TMP75CID Details

  • Manufacturer Part Number:

    TMP75CID

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    1 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.037 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.4 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

TMP75CID Frequently Asked Questions (FAQs)

  • The TMP75CID can operate from -40°C to 125°C, but the accuracy of the temperature measurement is specified from -20°C to 100°C.
  • The TMP75CID defaults to 12-bit resolution. To configure it for 13-bit resolution, set the RES bit in the configuration register (address 0x01) to 1.
  • The conversion time for the TMP75CID is approximately 30 ms for 12-bit resolution and 60 ms for 13-bit resolution.
  • Yes, the TMP75CID can be used for remote temperature sensing using a diode-connected transistor or a thermistor connected to the remote temperature sensing pins (VDD and VSS).
  • The digital output of the TMP75CID is a 12-bit or 13-bit binary value that represents the temperature in Celsius. To calculate the temperature, multiply the digital output by the temperature resolution (0.0625°C for 12-bit resolution or 0.03125°C for 13-bit resolution).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP75CID Overview

Use the download button to access the TMP75CID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP75, or try a keyword search, such as Temperature Sensors
