TMS320C25FNL - Texas Instruments

TMS320C25FNL Details

• Manufacturer Part Number:

  TMS320C25FNL

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

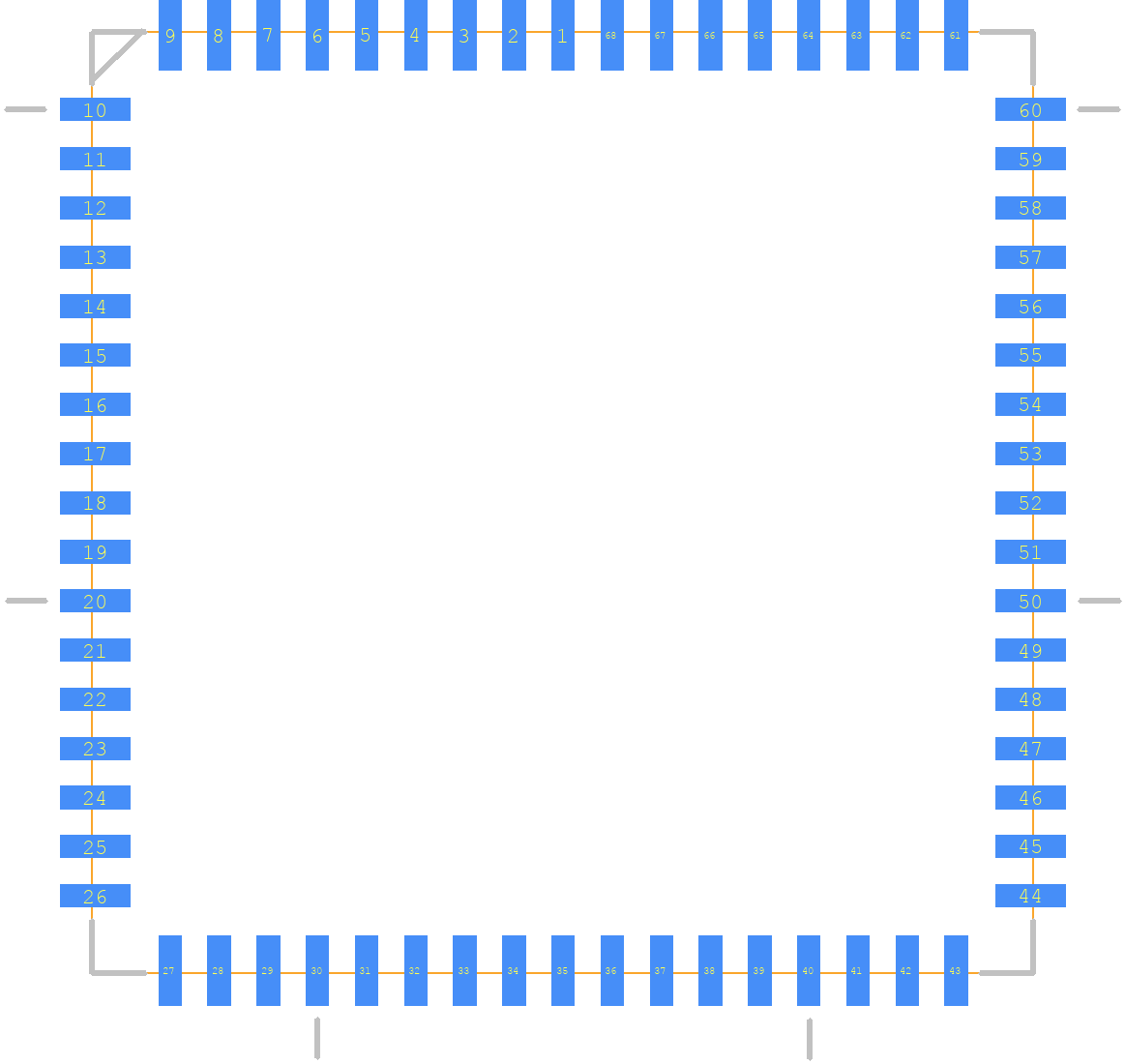

• Part Package Code:

  LCC

• Pin Count:

  68

• Country Of Origin:

  Philippines

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.35

• Date Of Intro:

  1986-01-01

• Manufacturer:

  Texas Instruments

• YTEOL:

  3.9

• Additional Feature:

  PID CONTROL; 256 WORDS DATA/PROG RAM

• Address Bus Width:

  16

• Barrel Shifter:

  NO

• Bit Size:

  16

• Boundary Scan:

  NO

• Clock Frequency-Max:

  40.96 MHz

• External Data Bus Width:

  16

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-PQCC-J68

• JESD-609 Code:

  e4

• Length:

  24.23 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of External Interrupts:

  3

• Number of Serial I/Os:

  1

• Number of Terminals:

  68

• Number of Timers:

  1

• On Chip Data RAM Width:

  16

• On Chip Program ROM Width:

  16

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC68,1.0SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (words):

  544

• ROM Programmability:

  MROM

• Seated Height-Max:

  4.57 mm

• Supply Current-Max:

  185 mA

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  24.23 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, OTHER
