The recommended power-up sequence is to apply VDD (1.8V) first, followed by VDDA (1.8V), and then VDDS (3.3V). This ensures proper device operation and prevents latch-up.
To configure the EMIF for optimal performance, set the EMIF clock frequency to match the memory clock frequency, and ensure that the memory timing parameters (e.g., tRC, tRAS, tRP) are set according to the memory device specifications.
The maximum operating frequency of the TMS320C6211BGFN167 is 167 MHz. However, the actual operating frequency may be limited by the specific application, board design, and thermal considerations.
The TMS320C6211BGFN167 has a built-in watchdog timer module. To implement a watchdog timer, configure the watchdog timer module to generate a reset signal if the timer expires. This can be done by setting the watchdog timer period, enabling the watchdog timer, and configuring the reset output.
The TCK pin is the clock input for the JTAG (Joint Test Action Group) interface, which is used for debugging and testing purposes. It is not a functional pin for the device's operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMS320C6211BGFN167 Overview

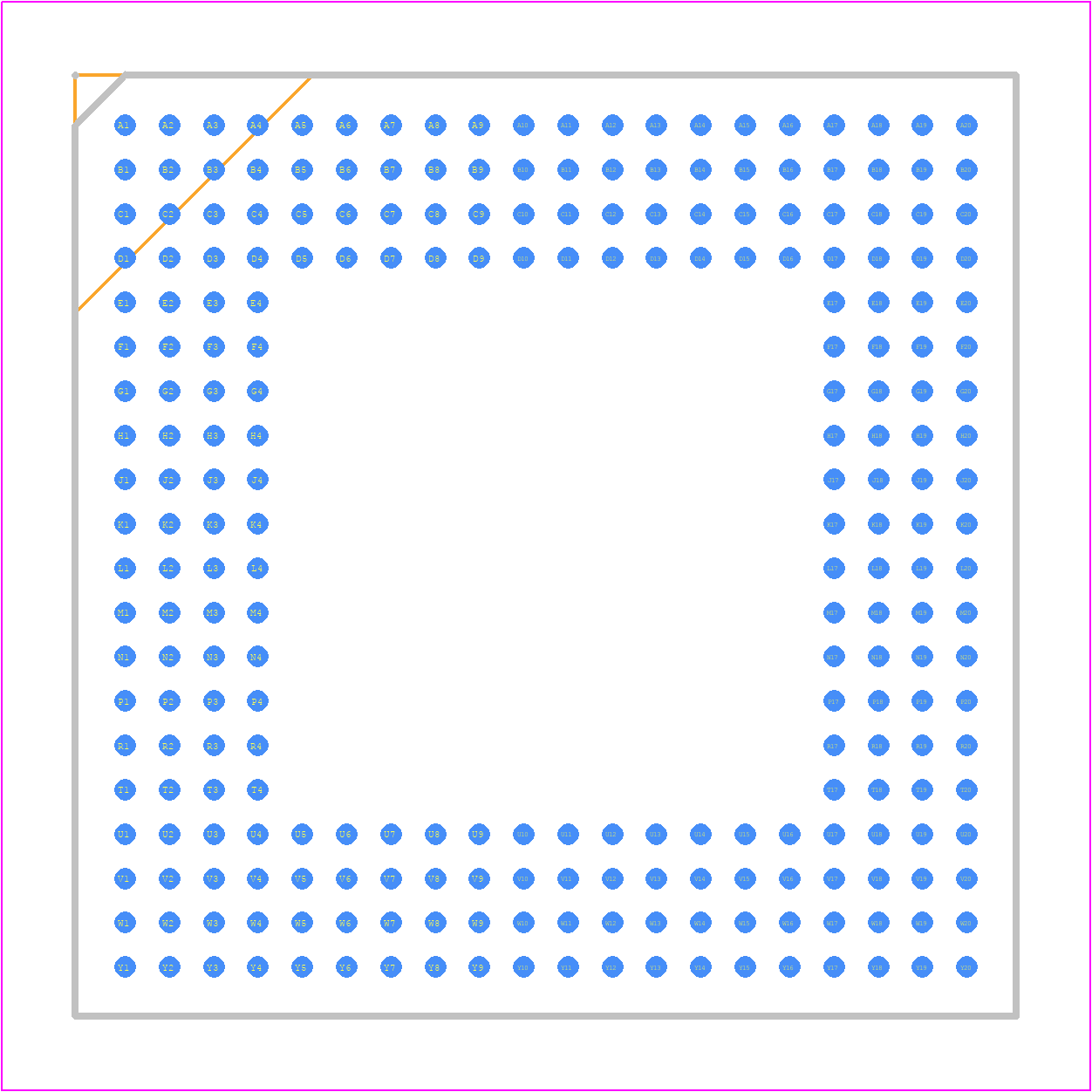

Use the download button to access the TMS320C6211BGFN167 schematic symbol, PCB footprint, and 3D model.
