TMS320C6727BZDH250 - Texas Instruments

Description: Floating-Point Digital Signal Processor

Download TMS320C6727BZDH250 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TMS320C6727BZDH250 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

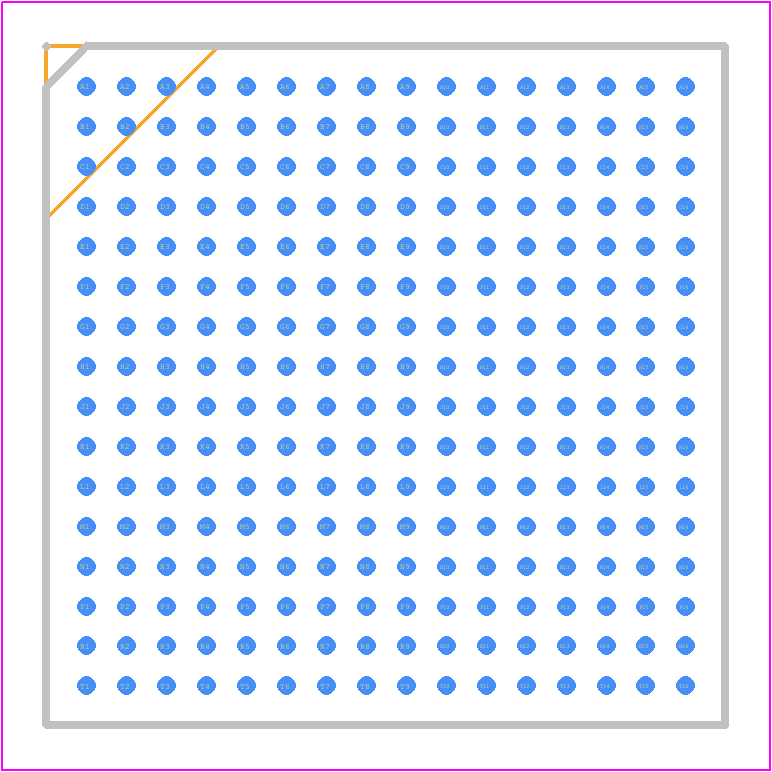

TMS320C6727BZDH250 - Texas Instruments PCB footprint - BGA - BGA - ZDH(S-PBGA-N256)_2021
click to zoom
3D Models
TMS320C6727BZDH250 - Texas Instruments - 3D model - BGA - ZDH(S-PBGA-N256)_2021
click to zoom

TMS320C6727BZDH250 Details

  • Manufacturer Part Number:

    TMS320C6727BZDH250

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    256

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Address Bus Width:

    13

  • Barrel Shifter:

    NO

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    25 MHz

  • External Data Bus Width:

    32

  • Format:

    FIXED POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B256

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Low Power Mode:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    256

  • Operating Temperature-Max:

    90 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.02 mm

  • Supply Voltage-Max:

    1.32 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

TMS320C6727BZDH250 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the core voltage (VDD) first, followed by the input/output voltage (VDDIO). This ensures that the internal voltage regulators are powered up correctly.
  • The EMIF can be configured using the EMIF configuration registers. The configuration depends on the type of memory being used (e.g., SDRAM, DDR, etc.). Refer to the device's user guide for specific configuration details.
  • The maximum clock frequency supported by the TMS320C6727BZDH250 is 300 MHz. However, the actual clock frequency may be limited by the specific application and system design.
  • The TMS320C6727BZDH250 has a built-in watchdog timer module. To implement a watchdog timer, configure the watchdog timer registers to set the timeout period and enable the watchdog timer. The watchdog timer can be reset using the watchdog timer reset register.
  • The ECC feature is used to detect and correct single-bit errors in external memory. It can be enabled or disabled using the ECC control register. ECC is useful in applications where data integrity is critical.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TMS320C6727BZDH250 Overview

Use the download button to access the TMS320C6727BZDH250 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMS32, or try a keyword search, such as Digital Signal Processors
