Description:High-efficiency 32-bit CPU (TMS320C28x)
– 60 MHz (16.67-ns cycle time)
– 50 MHz (20-ns cycle time)
– 40 MHz (25-ns cycle time)
– 16 × 16 and 32 × 32 MAC operations
– 16 × 16 dual MAC
– Harvard bus architecture
– Atomic operations
– Fast interrupt response and processing
– Unified memory programming model
– Code-efficient (in C/C++ and Assembly)
• Endianness: Little endian
• Low cost for both device and system:
– Single 3.3-V supply
– No power sequencing requirement
– Integrated power-on and b
The maximum operating temperature range for the TMS320F280200DAS is -40°C to 125°C (ambient temperature). However, it's recommended to operate within -40°C to 105°C for optimal performance and reliability.
The TMS320F280200DAS has multiple clock sources, including an internal oscillator, external crystal oscillator, and external clock source. You can configure the clock source using the Clock Enable (CKEN) register and the Clock Source Select (CSS) register. Refer to the device's user guide for specific configuration details.
The maximum current consumption of the TMS320F280200DAS varies depending on the operating frequency, voltage, and peripheral usage. According to the datasheet, the maximum current consumption is approximately 150 mA at 100 MHz and 3.3 V. However, this value can be higher or lower depending on the specific application and usage.
The TMS320F280200DAS has a built-in watchdog timer (WDT) that can be enabled and configured using the Watchdog Timer Control (WDTCTL) register. You can set the watchdog timer period, enable or disable the watchdog timer, and configure the watchdog timer reset behavior using this register.
The JTAG (Joint Test Action Group) interface on the TMS320F280200DAS is used for debugging, testing, and programming the device. It allows you to connect a JTAG debugger or emulator to the device and perform tasks such as code debugging, flash programming, and boundary scan testing.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TMS320F280200DAS Overview

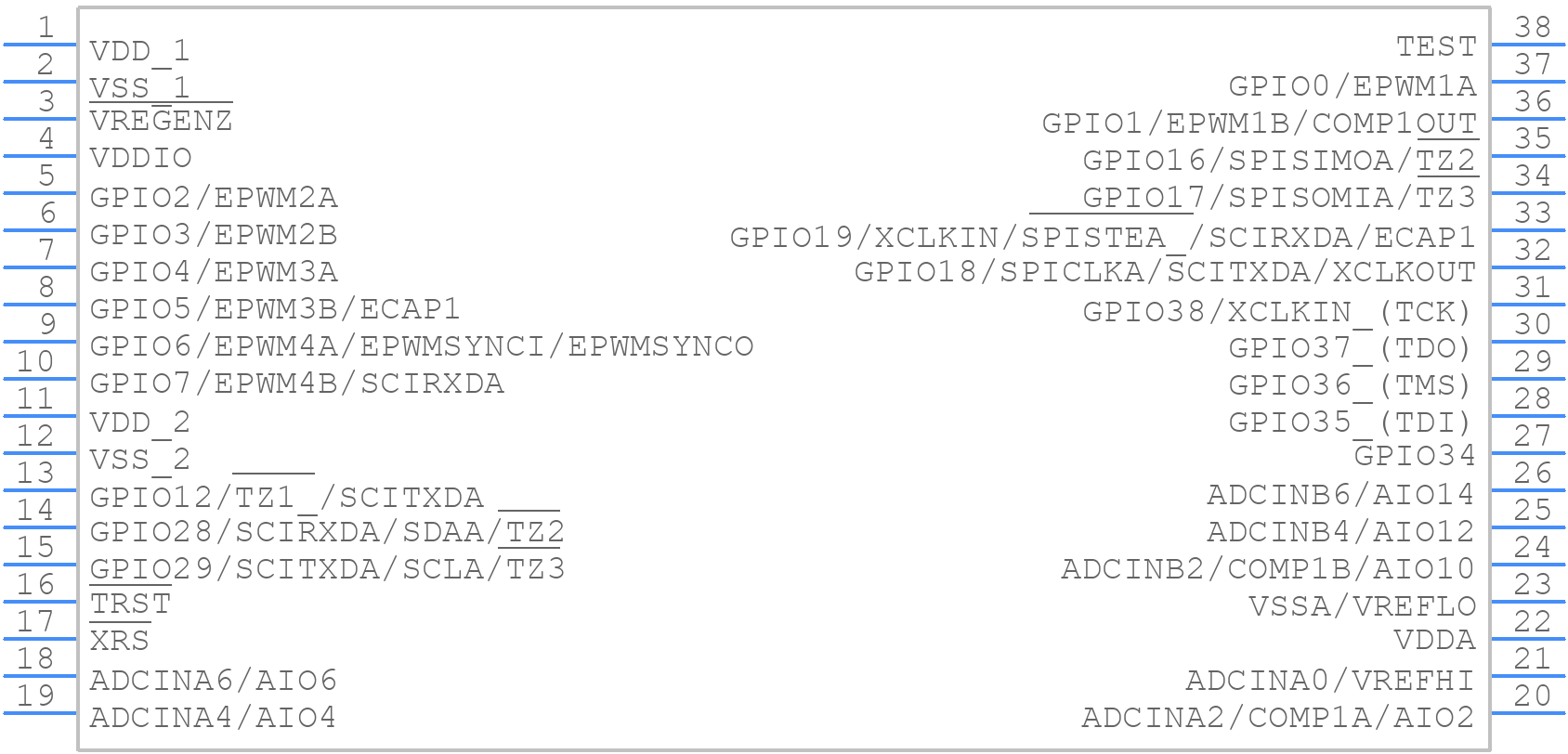

Use the download button to access the TMS320F280200DAS schematic symbol, PCB footprint, and 3D model.
