TMS320F28069PZPQ - Texas Instruments

TMS320F28069PZPQ Details

• Manufacturer Part Number:

  TMS320F28069PZPQ

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

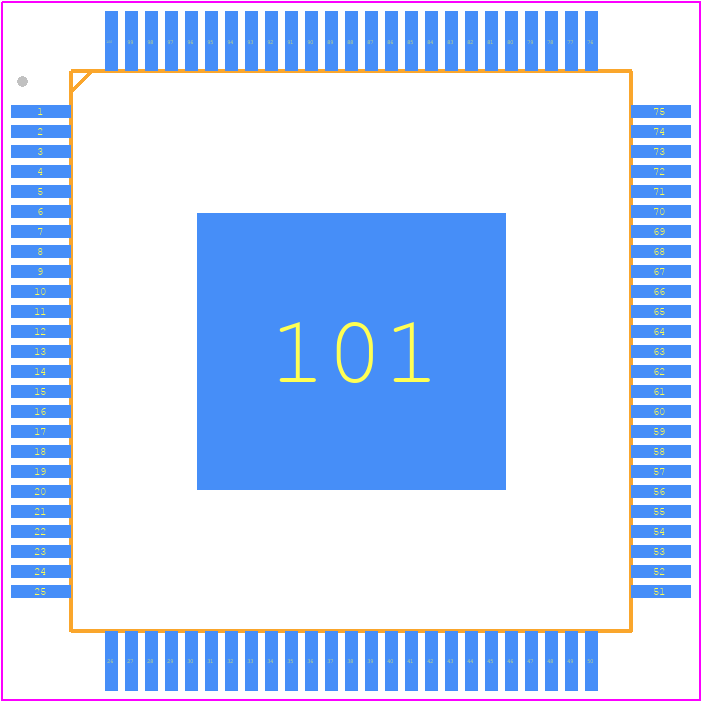

• Part Package Code:

  QFP

• Pin Count:

  100

• Country Of Origin:

  Philippines

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Has ADC:

  YES

• Additional Feature:

  2KB OF OTP ROM

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  TMS320

• Clock Frequency-Max:

  80 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FLOATING POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQFP-G100

• JESD-609 Code:

  e4

• Length:

  14 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of DMA Channels:

  6

• Number of External Interrupts:

  3

• Number of I/O Lines:

  54

• Number of Terminals:

  100

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTFQFP

• Package Equivalence Code:

  TQFP100,.63SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  102400

• ROM (words):

  262144

• ROM Programmability:

  FLASH

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.2 mm

• Speed:

  80 MHz

• Supply Current-Max:

  245 mA

• Supply Voltage-Max:

  1.995 V

• Supply Voltage-Min:

  1.71 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
