TMX320F28069UPZPA - Texas Instruments

TMX320F28069UPZPA Details

• Manufacturer Part Number:

  TMX320F28069UPZPA

• Brand Name:

  Texas Instruments

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

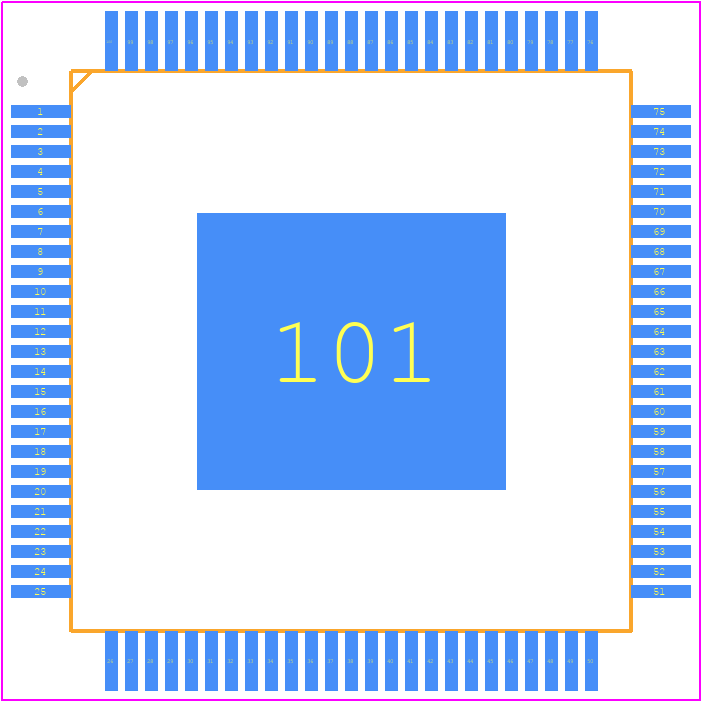

• Package Description:

  HTQFP-100

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Has ADC:

  YES

• Additional Feature:

  IT HAS OTPROM OF 1K

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  TMS320

• Clock Frequency-Max:

  90 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• JESD-30 Code:

  S-PQFP-G100

• Length:

  14 mm

• Number of I/O Lines:

  54

• Number of Terminals:

  100

• On Chip Program ROM Width:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTFQFP

• Package Equivalence Code:

  TQFP100,.63SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

• Qualification Status:

  Not Qualified

• RAM (bytes):

  51200

• ROM (words):

  131072

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.2 mm

• Speed:

  90 MHz

• Supply Voltage-Max:

  1.995 V

• Supply Voltage-Min:

  1.8 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
