TMS320F28374DPTPS - Texas Instruments

Description: 32-bit Microcontrollers - MCU Dual-Core Delfino Microcontroller 176-HLQFP -40 to 125

Download TMS320F28374DPTPS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TMS320F28374DPTPS - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

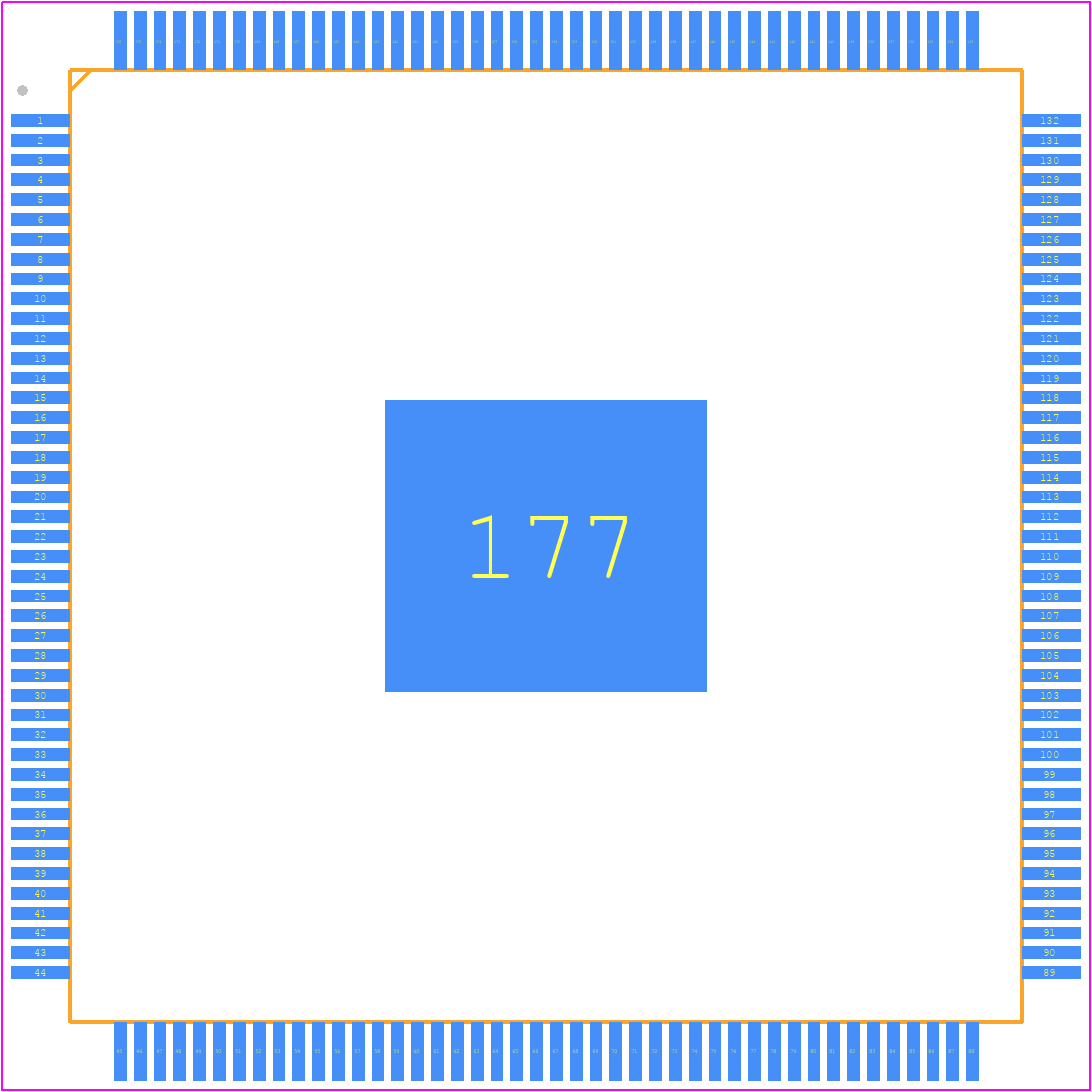

TMS320F28374DPTPS - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PTP0176F
click to zoom
3D Models
TMS320F28374DPTPS - Texas Instruments - 3D model - Quad Flat Packages - PTP0176F
click to zoom

TMS320F28374DPTPS Details

  • Manufacturer Part Number:

    TMS320F28374DPTPS

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    100 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G176

  • JESD-609 Code:

    e4

  • Length:

    24 mm

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    6

  • Number of I/O Lines:

    97

  • Number of Terminals:

    176

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    176128

  • ROM (words):

    524288

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    200 MHz

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

TMS320F28374DPTPS Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TMS320F28374DPTPS is -40°C to 125°C (TJ). However, it's recommended to operate within -40°C to 105°C (TA) for optimal performance and reliability.
  • To configure the clock system for optimal performance, use the Internal Oscillator (INTOSC) as the clock source, and enable the PLL (Phase-Locked Loop) to generate the desired clock frequency. Additionally, ensure that the clock divider settings are configured correctly to achieve the desired clock speed.
  • It's recommended to enable both POR and BOR to ensure reliable operation. Set the POR threshold to 1.8V and the BOR threshold to 1.7V to detect power-on and brown-out conditions. This configuration helps prevent the device from operating in an unstable state.
  • To optimize flash memory usage and performance, use the Flash Cache to reduce the number of flash accesses. Additionally, consider using the Data Cache to improve performance. It's also recommended to use the Flash Wait State Control to adjust the flash access timing for optimal performance.
  • When designing a power supply for the TMS320F28374DPTPS, ensure that the voltage regulator can provide a stable output voltage within the recommended range (1.8V to 3.6V). Additionally, consider using a low-dropout regulator (LDO) to minimize power consumption and heat generation. It's also recommended to add decoupling capacitors to filter out noise and ensure reliable operation.
