TMS320VC5409AZWS16 - Texas Instruments

TMS320VC5409AZWS16 Details

• Manufacturer Part Number:

  TMS320VC5409AZWS16

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Philippines

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.35

• Date Of Intro:

  2020-05-23

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Address Bus Width:

  23

• Barrel Shifter:

  YES

• Bit Size:

  16

• Boundary Scan:

  YES

• Clock Frequency-Max:

  20 MHz

• External Data Bus Width:

  16

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-PBGA-B144

• JESD-609 Code:

  e1

• Length:

  12 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of DMA Channels:

  6

• Number of External Interrupts:

  4

• Number of Terminals:

  144

• Number of Timers:

  1

• On Chip Data RAM Width:

  16

• On Chip Program ROM Width:

  16

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

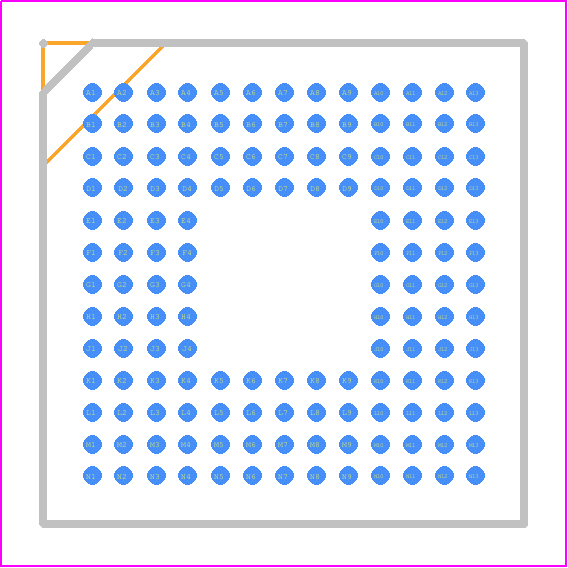

• Package Equivalence Code:

  BGA144,13X13,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• RAM (words):

  32768

• ROM Programmability:

  MROM

• Seated Height-Max:

  1.4 mm

• Supply Voltage-Max:

  1.65 V

• Supply Voltage-Min:

  1.55 V

• Supply Voltage-Nom:

  1.6 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  12 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, OTHER
