TMS320VC5509AGHHR-108 - Texas Instruments

TMS320VC5509AGHHR-108 Details

• Manufacturer Part Number:

  TMS320VC5509AGHHR-108

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.35

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Address Bus Width:

  22

• Barrel Shifter:

  NO

• Bit Size:

  16

• Boundary Scan:

  YES

• Clock Frequency-Max:

  33 MHz

• External Data Bus Width:

  16

• Format:

  FIXED POINT

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-PBGA-B179

• Length:

  12 mm

• Low Power Mode:

  YES

• Number of Terminals:

  179

• Operating Temperature-Max:

  90 °C

• Package Body Material:

  PLASTIC/EPOXY

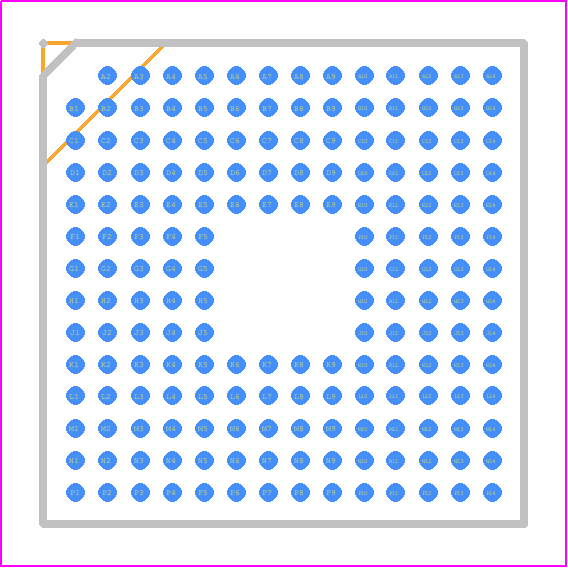

• Package Code:

  FBGA

• Package Equivalence Code:

  BGA179,14X14,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, FINE PITCH

• Qualification Status:

  Not Qualified

• RAM (words):

  131072

• Seated Height-Max:

  1.4 mm

• Supply Voltage-Max:

  3.46 V

• Supply Voltage-Min:

  3.13 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  12 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, MIXED
