The recommended power-up sequence is to apply VDD (1.2V to 1.4V) first, followed by VIO (1.8V to 3.3V) and then the clock signal. This ensures proper device operation and prevents latch-up.
To configure the EMIF for optimal performance, ensure that the memory timing parameters (e.g., clock frequency, latency, and burst length) are set according to the memory device's specifications. Additionally, use the EMIF's built-in features such as data strobe, address strobe, and burst mode to optimize data transfer.
The maximum operating frequency of the TMS320C6416EZLZ5E0 is 720 MHz. However, the actual operating frequency may be limited by the specific application, board design, and thermal considerations.
The TMS320C6416EZLZ5E0 has several low-power modes, including Idle, Standby, and Shutdown. These modes can be implemented using the Power Management Module (PMM) and the Clock Management Module (CMM). The device can be configured to enter these modes using software or hardware triggers, and the power consumption can be further reduced by disabling unused peripherals and clocks.
The TMS320C6416EZLZ5E0 can interface with up to 16MB of external memory using the EMIF. However, the actual amount of memory that can be used depends on the specific application and the memory technology used.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMS32C6416EZLZ5E0 Overview

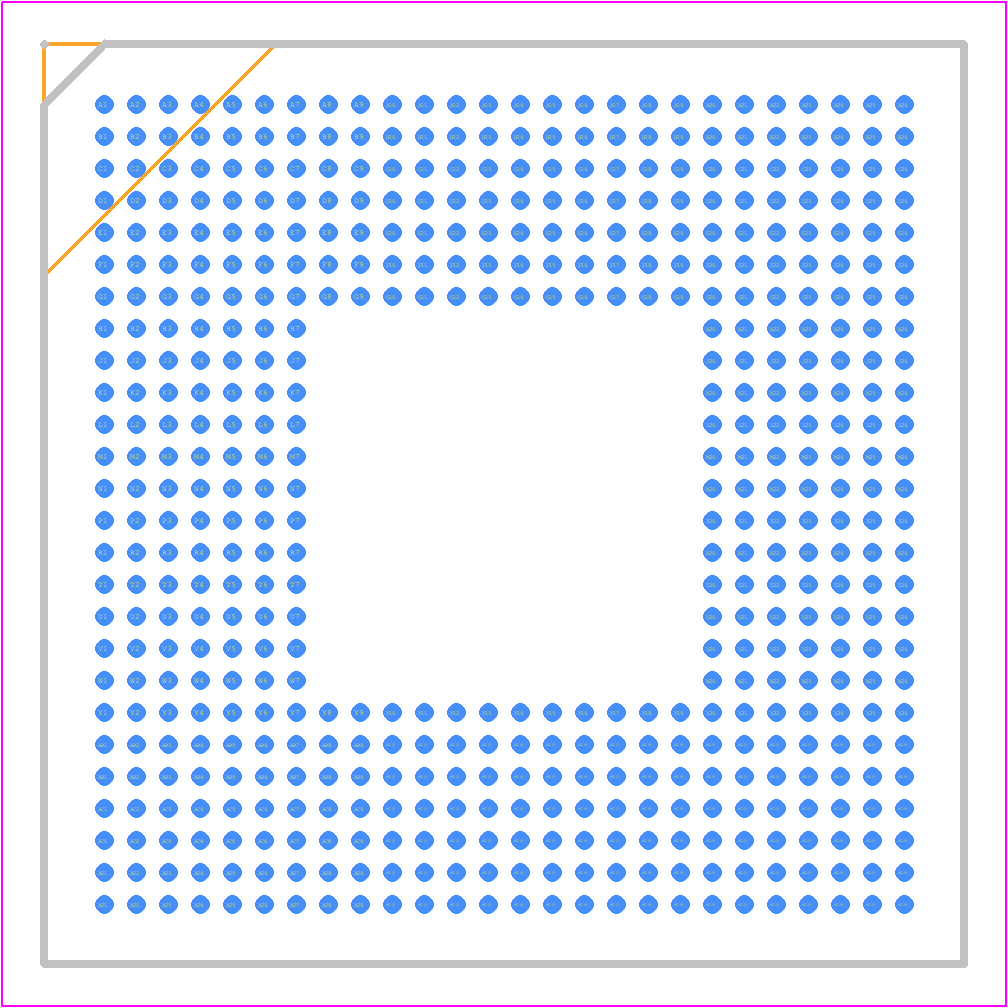

Use the download button to access the TMS32C6416EZLZ5E0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMS32,
or try a keyword search, such as Digital Signal Processors
