Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. Additionally, it's recommended to use a low-ESR capacitor for decoupling and to place it as close to the device as possible.
The TMSDC6722BRFPA225 requires a specific power-up sequence to ensure proper configuration. It's recommended to follow the power-up sequence outlined in the datasheet, which includes applying power to the device, waiting for the internal voltage regulators to stabilize, and then configuring the device through the SPI interface.
The TMSDC6722BRFPA225 is rated for operation from -40°C to 125°C. Operating the device outside of this range can affect its performance, including reduced accuracy, increased noise, and potential damage to the device.
To troubleshoot issues with the TMSDC6722BRFPA225, start by verifying the power supply and clock signals, then check the device configuration and register settings. Use the SPI interface to read back device registers and verify that the device is configured correctly. If issues persist, consult the datasheet and application notes for guidance.
The TMSDC6722BRFPA225 is not specifically designed or qualified for radiation-hardened or high-reliability applications. However, Texas Instruments offers other devices that are designed for these types of applications. Consult with a Texas Instruments representative to determine the best device for your specific requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMSDC6722BRFPA225 Overview

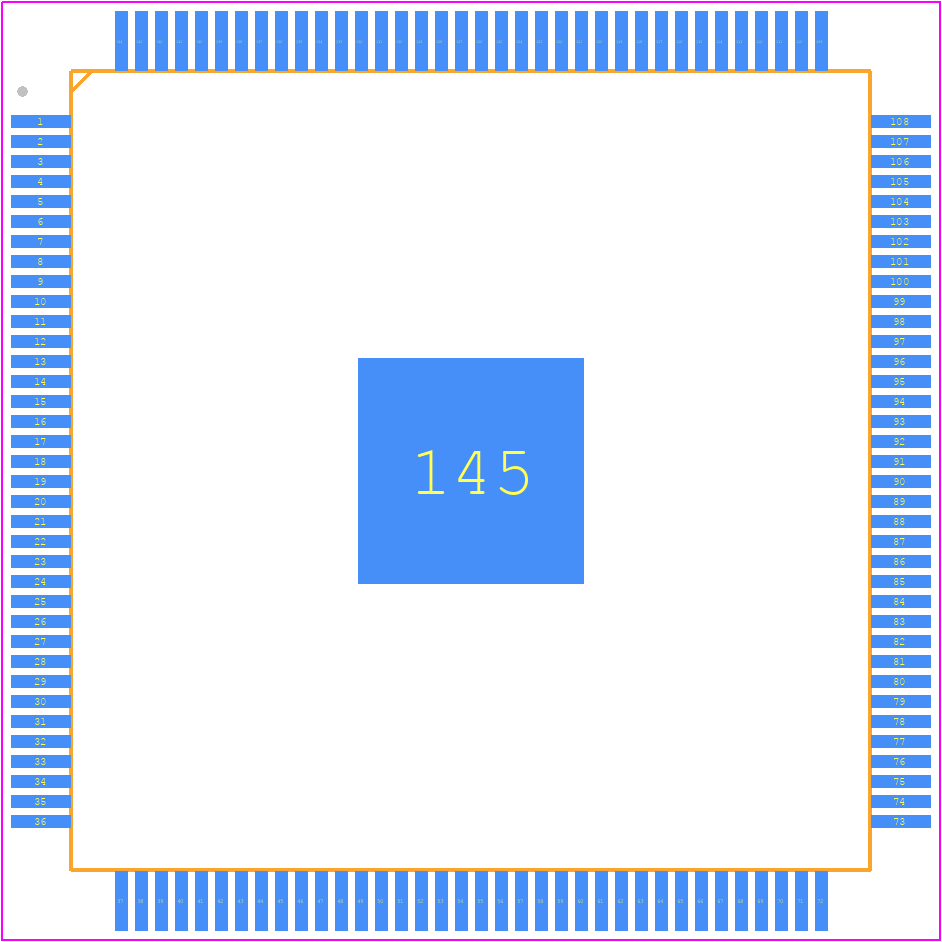

Use the download button to access the TMSDC6722BRFPA225 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMSDC,
or try a keyword search, such as Digital Signal Processors
