A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 4-layer PCB with a solid ground plane and a thermal relief pattern can also help to dissipate heat efficiently.
To ensure signal integrity, use a controlled impedance PCB design, keep signal traces short and away from noise sources, and use termination resistors to match the impedance of the signal lines. Additionally, use a common mode filter or a ferrite bead to reduce electromagnetic interference (EMI).
The recommended power-up sequence is to first apply the analog supply voltage (VCCA) and then the digital supply voltage (VCCD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper device operation.
The thermal shutdown feature is designed to protect the device from overheating. If the device temperature exceeds the thermal shutdown threshold, the device will shut down. To handle this, ensure good thermal design and heat dissipation, and consider using a thermal monitoring circuit to detect and respond to thermal shutdown events.
The TMUX1209PWR has built-in ESD protection, but additional external protection may be necessary depending on the application. Consider using TVS diodes or ESD protection arrays to protect the device from electrostatic discharge events.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMUX1209PWR Overview

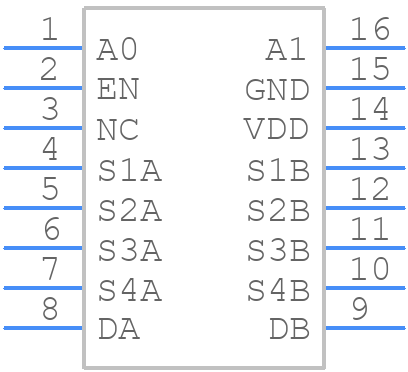

Use the download button to access the TMUX1209PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMUX1,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
