Texas Instruments recommends a symmetrical layout with matched trace lengths and impedance control to minimize signal degradation. It's also important to keep the analog and digital signals separate and avoid crossing them over each other.
The TMUX1309DYYR requires a stable power supply with minimal noise and ripple. It's recommended to use a low-ESR capacitor (e.g., 0.1 μF) for decoupling, placed as close as possible to the device. Additionally, ensure that the power supply lines are properly filtered and bypassed.
The TMUX1309DYYR can operate up to 100 MHz, but the maximum frequency depends on the specific application and signal integrity requirements. As the frequency increases, signal attenuation and distortion may occur, so it's essential to consider signal integrity and use proper termination and filtering techniques.
The TMUX1309DYYR can be configured for differential signaling by connecting the differential pairs (e.g., IN1+ and IN1-) to the corresponding pins. Differential signaling provides common-mode noise rejection, improved signal-to-noise ratio, and increased immunity to electromagnetic interference (EMI).
The recommended termination scheme for the TMUX1309DYYR is a 50-ohm termination resistor at the receiver end. This is important because it helps to match the impedance of the transmission line, reduce signal reflections, and improve signal integrity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMUX1309DYYR Overview

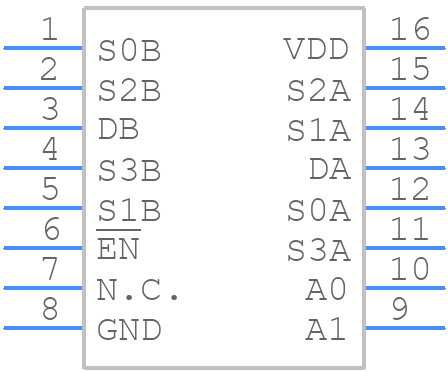

Use the download button to access the TMUX1309DYYR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMUX1,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
