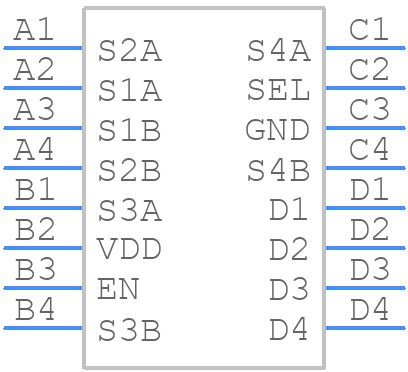

TMUX1575YCJR - Texas Instruments

TMUX1575YCJR Details

• Manufacturer Part Number:

  TMUX1575YCJR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Date Of Intro:

  2020-09-27

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  Configuration : 2:1 SPDT

• Analog IC - Other Type:

  SPDT

• Bandwidth-Nom:

  1800 MHz

• Input Voltage-Max:

  7.2 V

• JESD-30 Code:

  S-PBGA-B16

• JESD-609 Code:

  e1

• Length:

  1.5615 mm

• Moisture Sensitivity Level:

  1

• Normal Position:

  NO

• Number of Channels:

  4

• Number of Functions:

  1

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  70 dB

• On-state Resistance Match-Nom:

  0.01 Ω

• On-state Resistance-Max (Ron):

  6.5 Ω

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA16,4X4,14

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.35 mm

• Signal Current-Max:

  0.02 A

• Supply Current-Max (Isup):

  0.01 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  1.08 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  60 ns

• Switch-on Time-Max:

  115 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.35 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.5615 mm
