Texas Instruments recommends following a star-topology layout, keeping the signal traces short and away from power planes, and using a solid ground plane to reduce noise and crosstalk. Additionally, use a 50-ohm termination resistor for each channel to ensure signal integrity.
For high-speed signals, ensure that the mux is configured in 'high-speed mode' by setting the HS pin high. Also, use a 100-ohm differential termination resistor for each channel, and keep the signal traces as short as possible to minimize signal degradation.
The maximum operating frequency of the TMUX4827YBHR is 3.2 GHz. As the frequency increases, signal attenuation also increases. For frequencies above 1 GHz, signal attenuation can be significant, and signal amplification may be necessary to maintain signal integrity.
Power sequencing is critical for the TMUX4827YBHR. Ensure that the VCC supply voltage is ramped up slowly (typically 1-2 ms) to prevent latch-up and damage to the device. Also, ensure that the VCC supply voltage is stable and within the recommended operating range before applying signals to the device.
The TMUX4827YBHR has a maximum junction temperature of 150°C. To prevent overheating, ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider using a heat sink or thermal pad. Also, avoid high-power dissipation and ensure proper airflow around the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMUX4827YBHR Overview

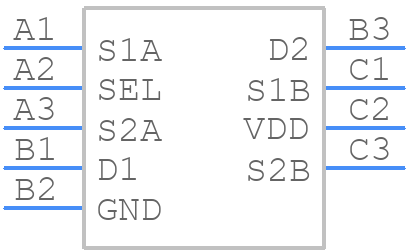

Use the download button to access the TMUX4827YBHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMUX4,
or try a keyword search, such as Multiplexers or Switches
