TMUX7413FRRPR - Texas Instruments

Description: Analog Switch ICs +/-60-V fault-protected, 1:1 (SPST), 4-channel switches with 1.8-V logic (2 active low, 2 active high)

Download TMUX7413FRRPR Model
Schematic
symbols

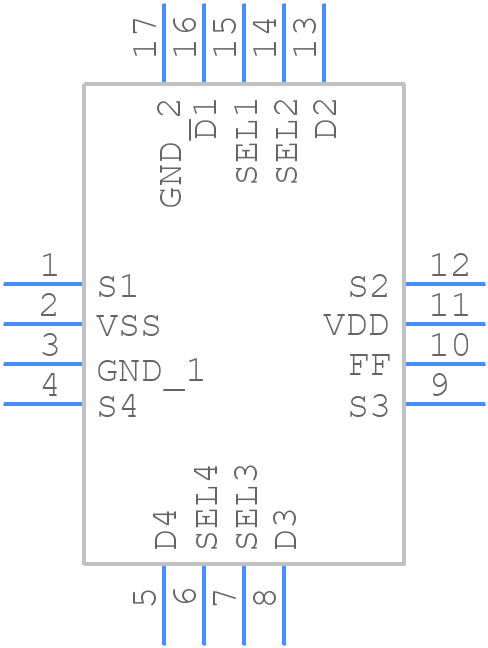

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TMUX7413FRRPR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RRP0016A
click to zoom
3D Models
TMUX7413FRRPR - Texas Instruments  - 3D model - Quad Flat No-Lead - RRP0016A
click to zoom

TMUX7413FRRPR Details

  • Manufacturer Part Number:

    TMUX7413FRRPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : 1:1 SPST

  • Analog IC - Other Type:

    SPST

  • Bandwidth-Nom:

    500 MHz

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -22 V

  • Neg Supply Voltage-Min (Vsup):

    -5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO/NC

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance Match-Nom:

    0.06 Ω

  • On-state Resistance-Max (Ron):

    17 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    44 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    150 ns

  • Switch-on Time-Max:

    710 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

TMUX7413FRRPR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the input and output traces are well-separated to minimize crosstalk.
  • To minimize high-frequency noise and EMI, use a low-pass filter at the input, and consider adding a ferrite bead or a common-mode choke to the output. Also, ensure that the device is properly decoupled, and the power supply is clean and well-regulated. Shielding the device and using a ground plane can also help reduce EMI.
  • The TMUX7413FRRPR is rated for operation from -40°C to 125°C. However, it's essential to consider the derating of the device's performance and power dissipation at higher temperatures. Consult the datasheet for specific temperature-related specifications and guidelines.
  • The input and output termination resistors depend on the specific application and signal requirements. As a general guideline, use a 50Ω termination resistor for high-speed signals, and a 1kΩ to 10kΩ resistor for low-speed signals. Consult the datasheet and application notes for specific guidance on termination resistor selection.
  • A good decoupling scheme involves using a combination of ceramic and electrolytic capacitors. Place a 0.1μF ceramic capacitor close to the device's power pins, and add a 10μF to 22μF electrolytic capacitor in parallel. Ensure that the capacitors are properly sized and placed to minimize inductance and resistance.
