Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for signal routing, grounding, and decoupling to minimize noise and ensure optimal performance.
To handle high-frequency noise, it is recommended to use a low-pass filter or a ferrite bead in series with the switch output, and to ensure proper grounding and decoupling of the PCB. Additionally, using a shielded cable or a twisted pair can help reduce electromagnetic interference (EMI).
The maximum operating frequency of the TMUXHS221NKGT is 100 MHz, but it can be operated at higher frequencies with reduced signal amplitude and increased power consumption. It is recommended to consult the datasheet and application notes for specific frequency-dependent performance characteristics.
To ensure signal integrity, it is recommended to use a controlled impedance PCB, minimize signal routing distances, and use a low-skew clock signal. Additionally, using a signal conditioning circuit or a buffer amplifier can help improve signal quality and reduce jitter.
Texas Instruments recommends using a decoupling capacitor with a value of 0.1 μF to 1 μF, placed as close as possible to the power supply pins of the device. A larger capacitor can be used in parallel to provide additional filtering and noise reduction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMUXHS221NKGT Overview

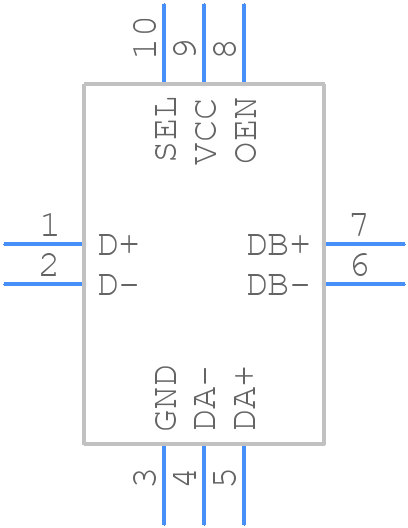

Use the download button to access the TMUXHS221NKGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMUXH,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
