The recommended PCB layout involves placing the TN0089A near the edge of the board, with a solid ground plane underneath. Thermal management involves using a heat sink with a thermal conductivity of at least 1 W/m-K, and ensuring good airflow around the component.
To ensure reliable soldering, use a soldering iron with a temperature range of 250-270°C, and apply a small amount of solder paste to the pads. Avoid applying excessive force or heat, and use a soldering technique that minimizes the risk of bridging or cold joints.
Store the TN0089A in a dry, cool place (below 30°C and 60% RH) away from direct sunlight and moisture. Handle the components by the edges, avoiding touching the pins or sensitive areas. Use anti-static packaging and follow ESD precautions during handling and assembly.
Yes, the TN0089A can be used in high-vibration or high-shock environments, but it's essential to ensure the component is properly secured to the PCB using a suitable adhesive or mechanical fastening method. Additionally, consider using a conformal coating to protect the component from environmental factors.
Potential failure modes include overheating, electrical overstress, and mechanical stress. To mitigate these, ensure proper thermal management, operate the component within the recommended voltage and current ranges, and avoid exposing it to excessive mechanical stress or vibration.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TN0089A Overview

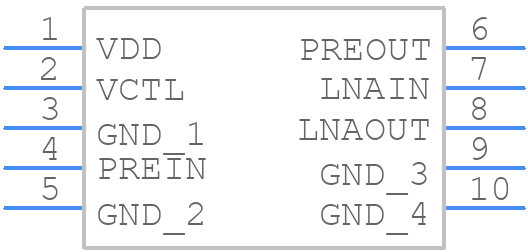

Use the download button to access the TN0089A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TN008,
or try a keyword search, such as Other Telecom ICs
