FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
0.26 mA
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Telecom IC Type:
ETHERNET TRANSCEIVER
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm
TNETE2201BPJW Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TNETE2201BPJW evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure reliable operation over the full temperature range (-40°C to 125°C), it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and avoiding thermal hotspots. Additionally, ensure that the device is operated within the recommended voltage and current ranges.
Operating the TNETE2201BPJW at a lower voltage than the recommended 3.3V may result in reduced performance, increased power consumption, and potential reliability issues. Operating at a higher voltage may cause excessive power consumption, increased heat generation, and potentially damage the device. It's recommended to operate the device within the specified voltage range for optimal performance and reliability.
To troubleshoot packet loss or corruption, start by verifying the physical layer connection, ensuring that the Ethernet cables are securely connected and not damaged. Then, check the device's configuration, including the PHY settings, MAC address, and packet transmission settings. Use diagnostic tools like packet sniffers or network analyzers to identify the source of the issue. Finally, consult the TNETE2201BPJW datasheet and application notes for guidance on troubleshooting and debugging.
When designing a redundant or fault-tolerant system using the TNETE2201BPJW, consider the following: ensure that the device is properly configured for redundant operation, use multiple devices to provide redundancy, implement fault detection and isolation mechanisms, and design the system to minimize single points of failure. Additionally, consult the datasheet and application notes for guidance on implementing redundant and fault-tolerant systems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TNETE2201BPJW Overview

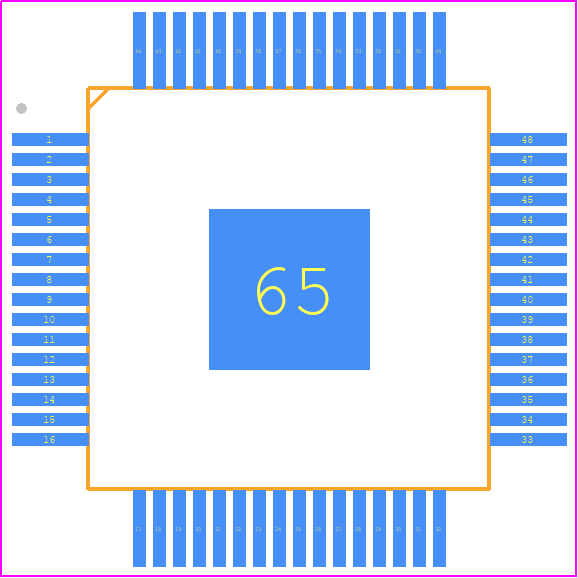

Use the download button to access the TNETE2201BPJW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TNETE,
or try a keyword search, such as Network Interfaces
