TNY276PN - Power Integrations

Description: Power Integrations TNY276PN Intelligent Power Switch, Off Line Switcher, 19W, 7-Pin, PDIP

Download TNY276PN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

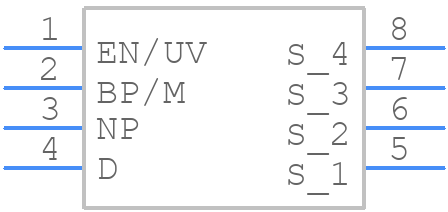

Symbol
TNY276PN - Power Integrations - PCB symbol
click to zoom
PCB Footprints
TNY276PN - Power Integrations PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - TNY276PN_11
click to zoom
3D Models
TNY276PN - Power Integrations - 3D model - Dual-In-Line Packages - TNY276PN_11
click to zoom

TNY276PN Details

  • Manufacturer Part Number:

    TNY276PN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Power Integrations

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDIP-T7

  • JESD-609 Code:

    e3

  • Length:

    9.575 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP7/8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    265 V

  • Supply Voltage-Min (Vsup):

    85 V

  • Supply Voltage-Nom (Vsup):

    230 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.6V

  • Width:

    7.62 mm

TNY276PN Frequently Asked Questions (FAQs)

  • The TNY276PN is a 6-pin, off-line switcher that can deliver up to 6.5 watts of output power.
  • The TNY276PN has a built-in thermal protection feature that shuts down the device if the junction temperature exceeds 150°C. Ensure good airflow and a suitable heat sink to keep the device within a safe operating temperature range.
  • The recommended input capacitor value for the TNY276PN is 2.2 μF to 4.7 μF, depending on the input voltage and desired ripple current.
  • Optimize the transformer design by selecting the correct turns ratio, core material, and winding configuration to ensure efficient energy transfer and minimize losses. Consult the Power Integrations application notes and transformer design guides for more information.
  • The BYPASS pin is used to connect an external bypass capacitor to filter the internal voltage regulator output, reducing noise and improving overall system stability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TNY276PN Overview

Use the download button to access the TNY276PN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TNY27, or try a keyword search, such as Power Management Circuits
