- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TP13054BDW
- Part Number TP13054BDW
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DW (R-PDSO-G16)
- Released Date May 18, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC

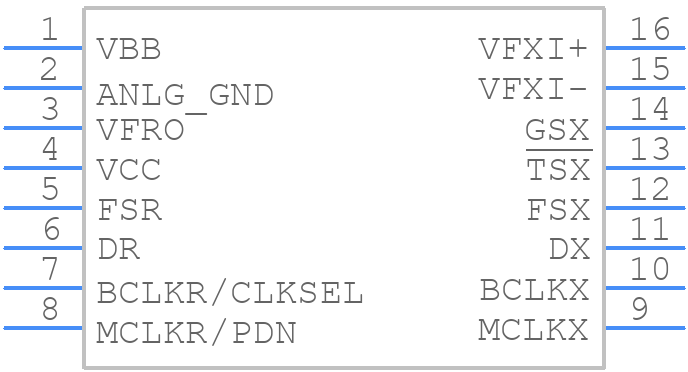

- Pinout / Pin List Click Here (Member Only)
TP13054BDW Details
-
Manufacturer Part Number:
TP13054BDW
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Additional Feature:
FULL DUPLEX
-
Companding Law:
MU-LAW
-
Filter:
YES
-
Gain Tolerance-Max:
0.15 dB
-
JESD-30 Code:
R-PDSO-G16
TP13054BDW Frequently Asked Questions (FAQs)
-
Texas Instruments recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended for optimal thermal performance.
-
To ensure reliable operation at high temperatures, it's essential to follow proper thermal design and layout guidelines, including providing adequate heat sinking, using a thermally conductive PCB material, and minimizing power dissipation. Additionally, consider using a thermal interface material (TIM) between the device and the heat sink.
-
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
-
Texas Instruments recommends using a human-body model (HBM) ESD protection diode, such as the TI's TPD1E05U06, to protect the device from electrostatic discharge. Additionally, follow proper handling and storage procedures to prevent ESD damage.
-
The recommended output filter capacitor value depends on the specific application and output voltage. As a general guideline, use a 10uF to 22uF ceramic capacitor with a voltage rating of at least 2x the output voltage. Consult the datasheet and application notes for more specific guidance.
Trust Checks
Community Provided
System Verified
Community Approved
TP13054BDW Overview
