SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
12 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPA0172PWPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPA0172PWPR evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The gain setting of the TPA0172PWPR depends on the specific application requirements. A higher gain setting can provide more output power, but may also increase distortion and noise. A lower gain setting can provide a cleaner output signal, but may not provide enough power. Consult the datasheet and application notes for guidance on selecting the optimal gain setting for your specific use case.
The TPA0172PWPR is rated for a maximum output power of 10W per channel into a 4Ω load. However, the actual power handling capability may be limited by the thermal design of the PCB, the quality of the power supply, and other system-level factors. Consult the datasheet and application notes for guidance on thermal design and power supply requirements.
The TPA0172PWPR requires a specific bias voltage and current to operate optimally. Consult the datasheet and application notes for guidance on setting the correct bias voltage and current, and for recommendations on bias circuit design and component selection.
Thermal management is critical for the TPA0172PWPR, as excessive heat can reduce performance and reliability. Key considerations include providing adequate heat sinking, using thermal interface materials, and designing the PCB for good thermal conduction. Consult the datasheet and application notes for guidance on thermal management and design recommendations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA0172PWPR Overview

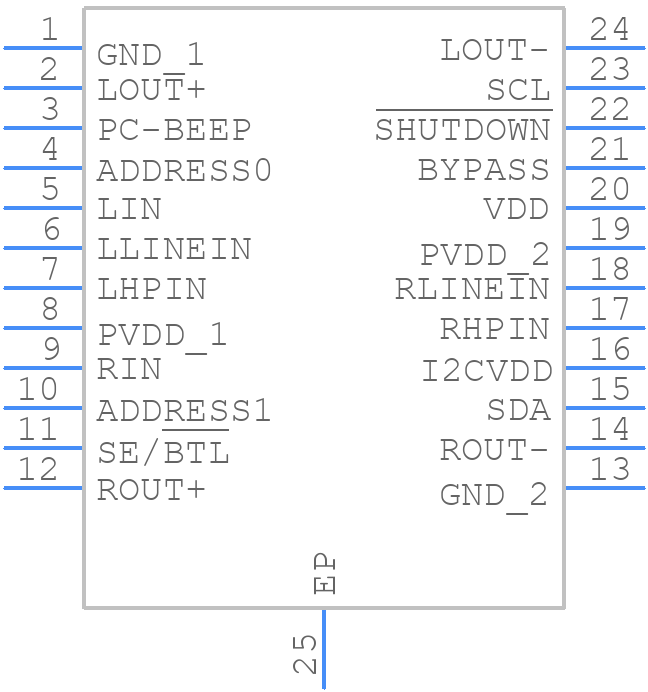

Use the download button to access the TPA0172PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA01,
or try a keyword search, such as Audio Control ICs
