SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
30 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPA0202PWPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPA0202PWPR datasheet, but it's also important to follow general audio PCB layout best practices, such as separating analog and digital grounds, using a star-grounding configuration, and minimizing trace lengths and widths to reduce noise and EMI.
To optimize the TPA0202PWPR for low noise and distortion, ensure that the input signals are properly filtered and decoupled, use a low-noise power supply, and optimize the gain setting to minimize noise and distortion. Additionally, consider using a higher-quality output capacitor and ensuring that the PCB layout is optimized for low noise and distortion.
The maximum power handling of the TPA0202PWPR is dependent on the output load impedance and the supply voltage. According to the datasheet, the device can deliver up to 2.5W of power into a 4Ω load with a 5V supply voltage. However, it's important to ensure that the device is properly heat-sinked and that the PCB layout is designed to handle the maximum power dissipation.
Yes, the TPA0202PWPR can be used in a stereo audio application by using two devices, one for each channel. However, it's important to ensure that the devices are properly synchronized and that the PCB layout is designed to minimize crosstalk and noise between the two channels.
The recommended operating temperature range for the TPA0202PWPR is -40°C to 85°C. However, it's important to ensure that the device is properly heat-sinked and that the PCB layout is designed to handle the maximum operating temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA0202PWPR Overview

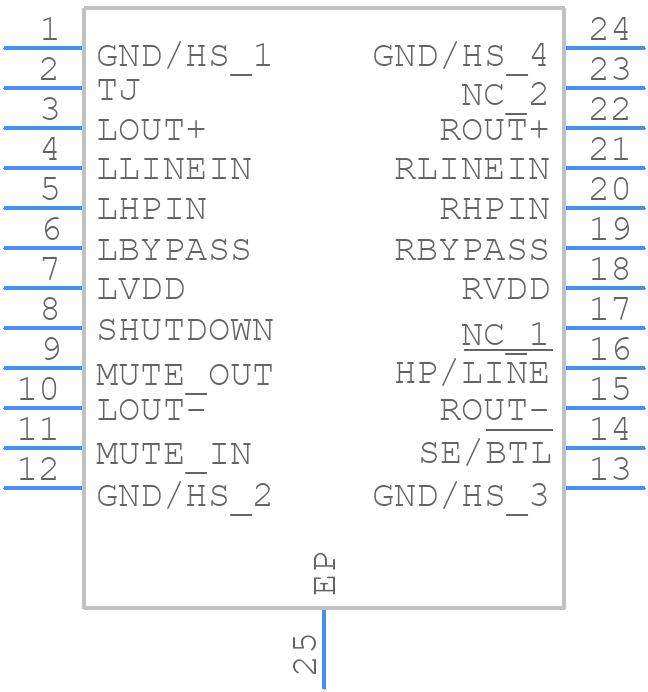

Use the download button to access the TPA0202PWPR schematic symbol, PCB footprint, and 3D model.
