SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Current-Max:
15 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPA0223DGQR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPA0223DGQR datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the audio signal traces short and away from noise sources, using a solid ground plane, and decoupling the power supply lines.
The gain setting depends on the input signal level and the desired output power. The TPA0223DGQR has a gain range of 6 dB to 26 dB. A higher gain setting can provide more output power, but may also increase noise and distortion. A lower gain setting can provide a cleaner signal, but may not provide enough output power. It's recommended to experiment with different gain settings to find the optimal value for your specific application.
The maximum power dissipation of the TPA0223DGQR is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5 W at 25°C ambient temperature. However, this value can be derated at higher temperatures. It's recommended to perform thermal analysis and simulation to ensure the device operates within its thermal limits.
The TPA0223DGQR has built-in EMI filtering, but additional filtering may be necessary depending on the specific application. It's recommended to use a combination of passive and active filtering techniques, such as RC filters, ferrite beads, and common-mode chokes, to filter out noise and EMI. Additionally, proper PCB layout and shielding can also help to reduce noise and EMI.
The TPA0223DGQR requires a well-regulated power supply with minimal ripple and noise. A recommended decoupling scheme is to use a combination of ceramic and electrolytic capacitors, with values ranging from 10 nF to 100 uF, placed close to the device's power pins. Additionally, it's recommended to use a voltage regulator with a low dropout voltage and high power supply rejection ratio (PSRR) to ensure a clean power supply.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA0223DGQR Overview

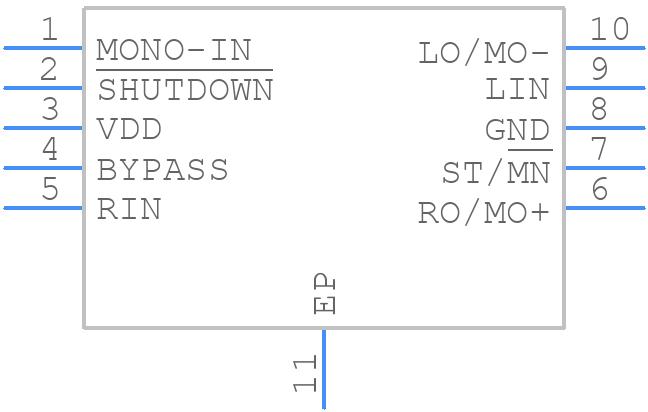

Use the download button to access the TPA0223DGQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA02,
or try a keyword search, such as Audio/Video Amplifiers
