SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Current-Max:
5 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPA0233DGQ Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPA0233DGQ datasheet, which includes guidelines for component placement, trace routing, and grounding. Following this layout can help minimize noise, distortion, and electromagnetic interference (EMI).
The gain setting of the TPA0233DGQ depends on the specific requirements of your application. The datasheet provides a gain setting table that can help you determine the correct gain based on the input signal level and desired output power. You can also use the device's gain adjustment pins to fine-tune the gain setting.
The maximum power dissipation of the TPA0233DGQ is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5 W at an ambient temperature of 25°C. However, this value can be derated at higher temperatures. It's essential to ensure proper thermal management to prevent overheating and damage to the device.
The TPA0233DGQ has built-in electrostatic discharge (ESD) protection, but it's still important to take precautions during handling and assembly. Use ESD-safe equipment and follow proper handling procedures to prevent damage. Additionally, consider adding external overvoltage protection devices, such as transient voltage suppressors (TVS) or zener diodes, to protect the device from voltage transients and surges.
The recommended input and output coupling capacitor values for the TPA0233DGQ depend on the specific application and frequency range. As a general guideline, use capacitors with a value of 1-10 μF for input coupling and 10-100 μF for output coupling. The datasheet provides more detailed information on capacitor selection and filtering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA0233DGQ Overview

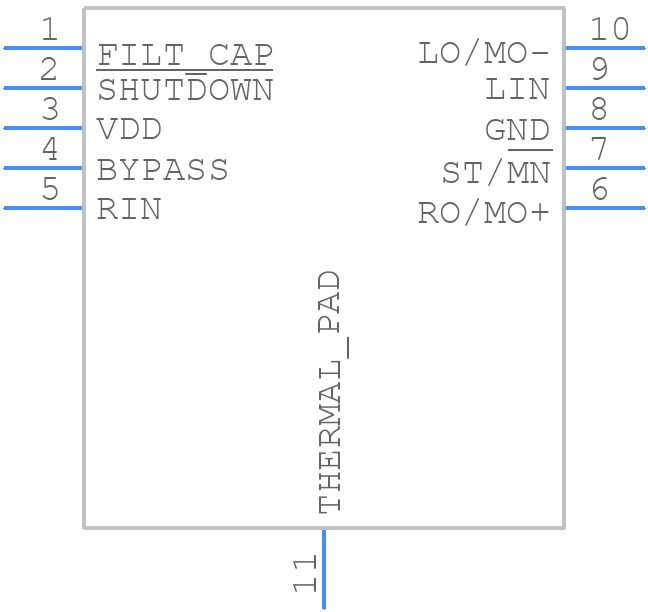

Use the download button to access the TPA0233DGQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA02,
or try a keyword search, such as Audio/Video Amplifiers
