SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Current-Max:
4.8 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPA0253DGQR Frequently Asked Questions (FAQs)
According to TI's application notes, a 10uF capacitor in parallel with a 100nF capacitor is recommended for power supply decoupling to ensure stability and minimize noise.
The gain setting depends on the specific application requirements. TI recommends using the gain calculation formula provided in the datasheet and adjusting the gain resistors accordingly. Additionally, consider the input impedance, output impedance, and desired signal-to-noise ratio when optimizing the gain setting.
The TPA0253DGQR can handle up to 5.5W of continuous average power per channel. However, this value may vary depending on the specific application, thermal conditions, and PCB design. It's essential to follow proper thermal management and heat sinking to ensure reliable operation.
Yes, the TPA0253DGQR can be used in a bridged configuration to increase the power output. However, this requires careful consideration of the output stage, load impedance, and thermal management. TI provides application notes and design guides for bridged configurations.
To minimize EMI and RFI, follow proper PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components. Additionally, ensure proper power supply decoupling, and consider using EMI filters or common-mode chokes in the signal path.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA0253DGQR Overview

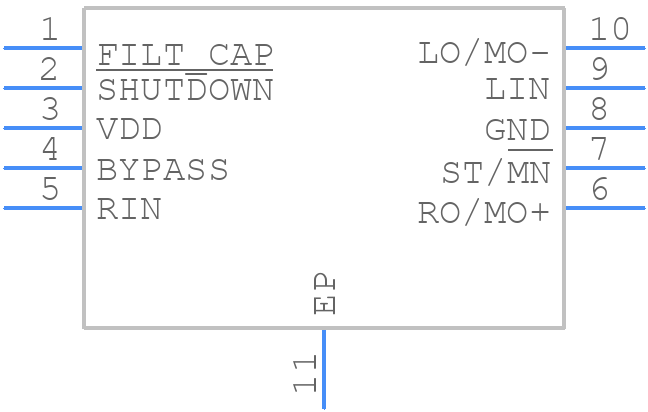

Use the download button to access the TPA0253DGQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA02,
or try a keyword search, such as Audio/Video Amplifiers
