SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
10 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPA0312PWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the signal traces short and away from the power traces, and using a solid ground plane.
The gain setting depends on the specific requirements of your application. The TPA0312PWP has three gain settings: 6dB, 12dB, and 18dB. Choose the gain setting that provides the desired output power and signal-to-noise ratio for your system.
The maximum power dissipation of the TPA0312PWP is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the actual operating conditions.
The TPA0312PWP has built-in EMI filtering, but additional filtering may be necessary depending on the specific requirements of your application. Consider adding external filters, such as RC filters or ferrite beads, to reduce noise and EMI.
No, the TPA0312PWP is not designed for bridged operation. It's a stereo audio amplifier, and bridging would require a different amplifier configuration. If you need a higher power output, consider using a different amplifier or a separate bridging amplifier.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA0312PWP Overview

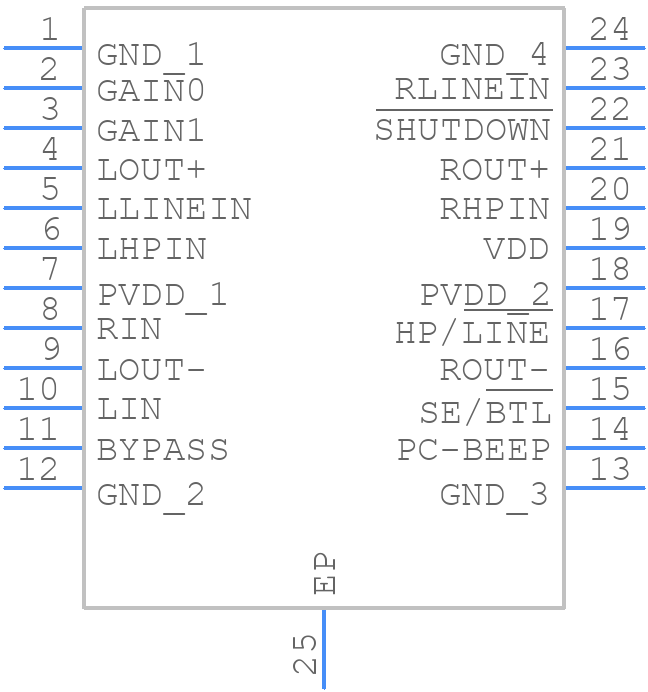

Use the download button to access the TPA0312PWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA03,
or try a keyword search, such as Audio Control ICs
