Texas Instruments provides a recommended PCB layout in the TPA1517 application note (SLVAU62) that includes thermal vias, copper pours, and component placement guidelines to minimize thermal resistance and ensure optimal heat dissipation.
The gain setting resistors (Rf and Ri) can be selected using the gain calculation formula provided in the datasheet. Additionally, Texas Instruments offers a gain calculator tool (TPA1517 Gain Calculator) that can help simplify the process.
The maximum power dissipation of the TPA1517DWPRG4 is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, this value can be derated based on the thermal resistance of the PCB and the ambient temperature.
Yes, the TPA1517DWPRG4 can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage configuration, gain setting, and thermal management. Texas Instruments provides guidance on bridged configurations in the application note (SLVAU62).
The recommended input capacitor value and type depend on the specific application requirements. However, as a general guideline, a 1-10uF ceramic or film capacitor with a voltage rating of at least 10V is recommended. The capacitor should be placed as close as possible to the input pins to minimize noise and ensure stability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA1517DWPRG4 Overview

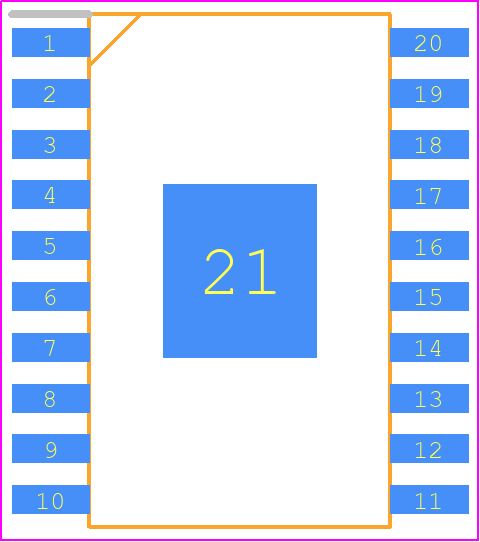

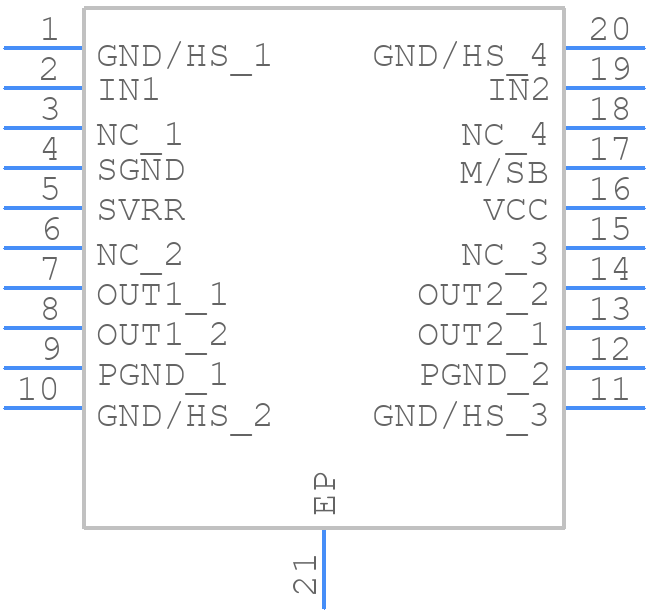

Use the download button to access the TPA1517DWPRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA15,
or try a keyword search, such as Audio/Video Amplifiers
