Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor values depend on the input signal frequency, amplitude, and source impedance. A general rule of thumb is to use a capacitor with a value between 1uF to 10uF, with a voltage rating that exceeds the maximum input voltage. It's also important to consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) when selecting the correct value.
The maximum power dissipation of the TPA1517NEE4 depends on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, this value can be derated based on the thermal resistance of the PCB and the ambient temperature.
The TPA1517NEE4 has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it's still recommended to add external protection components, such as voltage regulators, TVS diodes, or zener diodes, to ensure that the device operates within its specified voltage range.
The recommended heatsink for the TPA1517NEE4 depends on the application's thermal requirements and the ambient temperature. A general rule of thumb is to use a heatsink with a thermal resistance of less than 10°C/W. Texas Instruments provides thermal resistance values for different heatsink configurations in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA1517NEE4 Overview

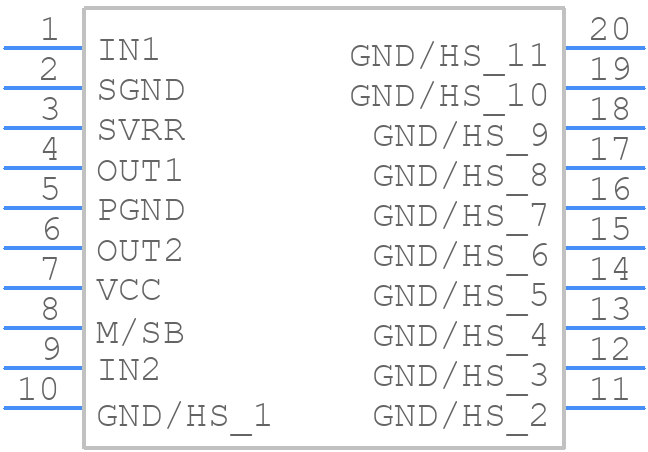

Use the download button to access the TPA1517NEE4 schematic symbol, PCB footprint, and 3D model.
