Texas Instruments provides a recommended PCB layout in the TPA152D datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the signal traces short and away from the power traces, using a solid ground plane, and minimizing vias and thermal reliefs.
The input capacitor (CIN) should be chosen based on the input frequency and impedance. A general rule of thumb is to use a capacitor with a value between 10nF to 100nF, and a voltage rating that exceeds the maximum input voltage. Additionally, the capacitor should have a low equivalent series resistance (ESR) to minimize power loss.
The maximum power dissipation of the TPA152D depends on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, this value can be derated at higher temperatures. It's essential to perform thermal calculations to ensure the device operates within its safe operating area.
To protect the TPA152D from ESD and overvoltage, it's recommended to use external protection devices such as TVS diodes or ESD protection arrays. Additionally, the input and output pins should be connected to the power supply through resistors or inductors to limit the voltage and current during an ESD event or overvoltage condition.
The recommended operating voltage range for the TPA152D is 2.7V to 5.5V. Operating the device outside this range may affect its performance, reliability, or even cause damage. It's essential to ensure the power supply voltage is within the recommended range to guarantee the device operates correctly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA152D Overview

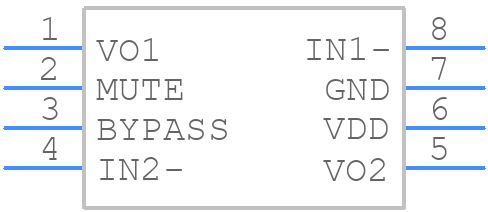

Use the download button to access the TPA152D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA15,
or try a keyword search, such as Audio/Video Amplifiers
