SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
10 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPA2001D2PWPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPA2001D2PWPR evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The gain setting of the TPA2001D2PWPR depends on the specific application requirements. A higher gain setting can provide more output power, but may also increase distortion and noise. A lower gain setting can provide a cleaner output signal, but may not provide enough power. Engineers should consult the datasheet and application notes to determine the optimal gain setting for their specific use case.
The maximum power dissipation of the TPA2001D2PWPR is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5W at a junction temperature of 150°C. However, engineers should consult the thermal design guidelines in the datasheet to ensure that the device is operated within safe operating conditions.
The TPA2001D2PWPR has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, engineers should still consider adding external protection components, such as voltage regulators and transient voltage suppressors, to ensure that the device is protected from voltage transients and surges.
The recommended input and output coupling capacitor value depends on the specific application requirements and the frequency range of operation. According to the datasheet, a 1uF to 10uF capacitor is recommended for input and output coupling. However, engineers should consult the application notes and evaluate the specific requirements of their design to determine the optimal capacitor value.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA2001D2PWPR Overview

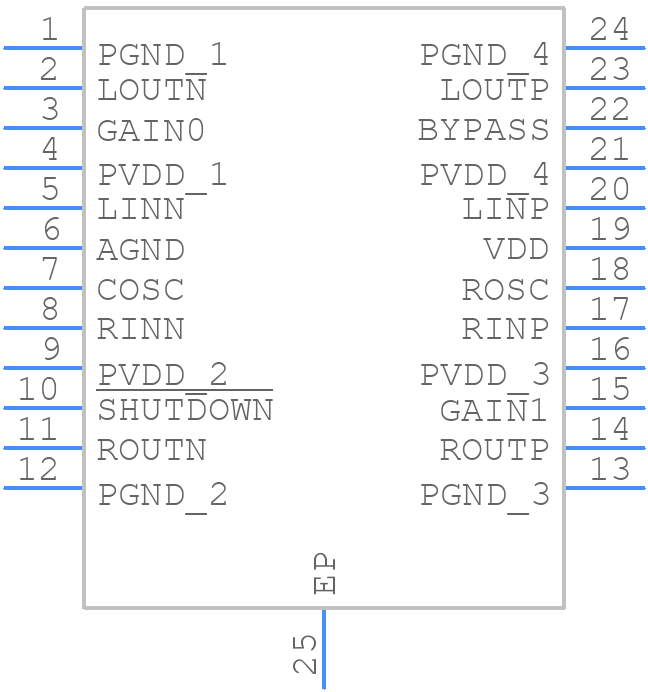

Use the download button to access the TPA2001D2PWPR schematic symbol, PCB footprint, and 3D model.
