Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the audio signal traces short and away from the power supply lines, and using a solid ground plane to reduce noise and EMI.
The gain setting depends on the specific application and the desired output power. The datasheet provides a gain calculation formula, but it's essential to consider the input signal level, output impedance, and desired output power when selecting the gain setting.
The maximum power dissipation of the TPA2005D1TDGNRQ1 is dependent on the ambient temperature and the thermal resistance of the PCB. The datasheet provides a thermal derating curve to help estimate the maximum power dissipation for a given ambient temperature.
To protect the TPA2005D1TDGNRQ1 from overheating, ensure good thermal design practices, such as using a heat sink, providing adequate airflow, and avoiding high ambient temperatures. The device also has a built-in thermal shutdown feature that turns off the device when it exceeds a certain temperature.
The recommended input capacitor value depends on the input signal frequency and amplitude. A general rule of thumb is to use a capacitor with a value of 1-10uF, but it's essential to consider the specific application requirements and follow the datasheet recommendations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA2005D1TDGNRQ1 Overview

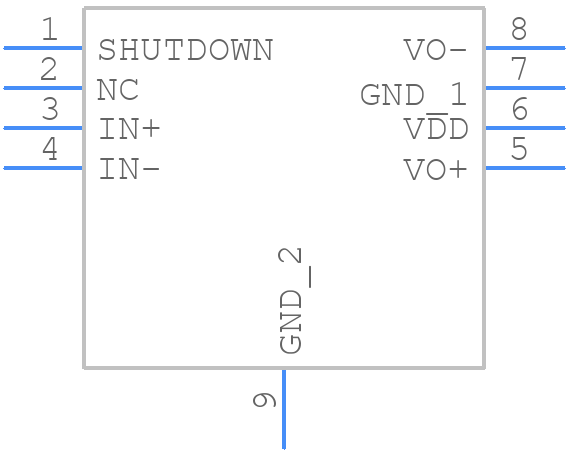

Use the download button to access the TPA2005D1TDGNRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA20,
or try a keyword search, such as Audio/Video Amplifiers
