SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
15 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPA2008D2PWPRG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website has a PCB layout guide and a thermal design guide that can be consulted for more information.
The gain setting for the TPA2008D2PWPRG4 depends on the specific requirements of your application. The datasheet provides a gain setting table that can be used to select the correct gain based on the input voltage, output power, and desired signal-to-noise ratio. Additionally, TI provides a gain calculator tool on their website that can be used to determine the optimal gain setting.
The maximum power dissipation of the TPA2008D2PWPRG4 is dependent on the ambient temperature and the thermal resistance of the PCB. The datasheet provides a power dissipation calculation formula and a thermal resistance table that can be used to determine the maximum power dissipation for a given application.
The TPA2008D2PWPRG4 has built-in ESD protection, but additional protection measures can be taken to ensure the device is protected from overvoltage and ESD events. The datasheet recommends using TVS diodes and resistors in series with the input pins to protect against overvoltage, and using ESD protection devices such as diodes or varistors to protect against ESD events.
The recommended input capacitor value for the TPA2008D2PWPRG4 depends on the specific application and the desired frequency response. The datasheet recommends a minimum input capacitor value of 1uF, but values up to 10uF or more may be required for certain applications. TI provides a capacitor selection guide on their website that can be used to determine the optimal input capacitor value.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA2008D2PWPRG4 Overview

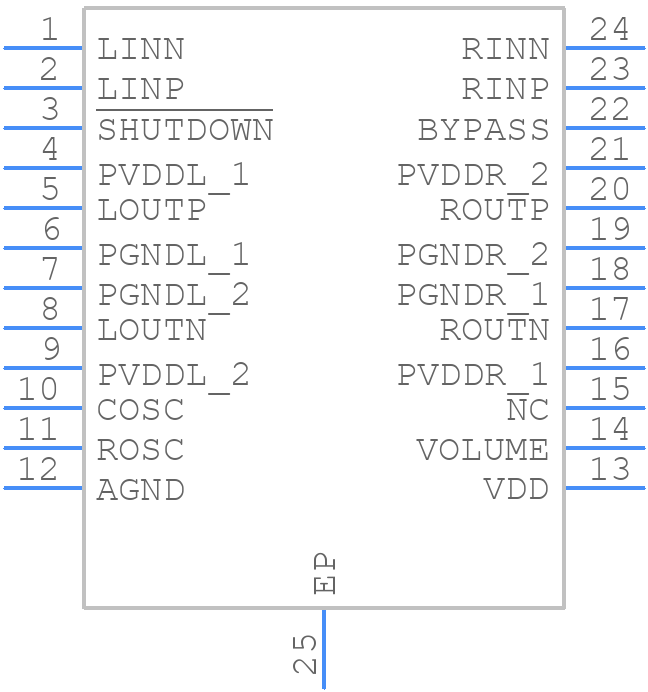

Use the download button to access the TPA2008D2PWPRG4 schematic symbol, PCB footprint, and 3D model.
