A good PCB layout for the TPA2010D1YZFT involves keeping the input and output traces short and away from each other, using a ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
The gain setting depends on the input signal level, desired output power, and system impedance. TI provides a gain setting table in the datasheet, and you can also use the TI Audio Amplifier Gain Calculator tool to help select the optimal gain setting.
The maximum power dissipation of the TPA2010D1YZFT is dependent on the ambient temperature and the thermal resistance of the PCB. TI provides a power dissipation calculation formula in the datasheet, and you can also use the TI Power Dissipation Calculator tool to estimate the maximum power dissipation.
To protect the TPA2010D1YZFT from overvoltage and ESD, use a voltage regulator to regulate the supply voltage, add TVS diodes for overvoltage protection, and follow proper ESD handling and storage procedures. TI also recommends using a voltage clamp circuit to protect the device from voltage spikes.
For thermal management, use a heat sink or thermal pad to dissipate heat, ensure good airflow around the device, and avoid blocking airflow with components or obstacles. TI provides thermal resistance values in the datasheet to help with thermal design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA2010D1YZFT Overview

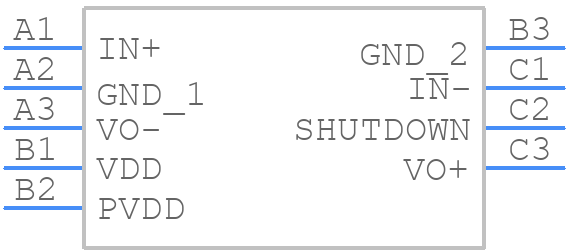

Use the download button to access the TPA2010D1YZFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA20,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
