TPA2011D1YFFR - Texas Instruments

Description: 3.2W mono class-d with auto-recovering short-circuit protection

Download TPA2011D1YFFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

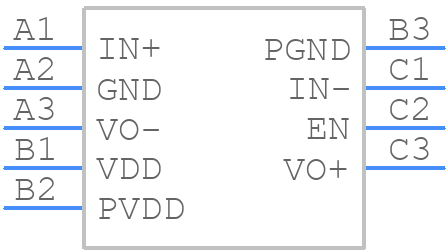

TPA2011D1YFFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA2011D1YFFR - Texas Instruments PCB footprint - BGA - BGA - YFF00009
click to zoom
3D Models
TPA2011D1YFFR - Texas Instruments - 3D model - BGA - YFF00009
click to zoom

TPA2011D1YFFR Details

  • Manufacturer Part Number:

    TPA2011D1YFFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    9

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PBGA-B9

  • JESD-609 Code:

    e1

  • Length:

    1.6 mm

  • Moisture Sensitivity Level:

    1

  • Noise Figure-Nom:

    95 dB

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    3.2 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.625 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

TPA2011D1YFFR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends using a 10uF capacitor in parallel with a 100nF capacitor, both connected between the power supply pins (VCC and GND) to ensure stable operation.
  • The gain setting depends on the specific application requirements. A good starting point is to use the recommended gain setting from the datasheet (e.g., 20dB for line driver applications). Then, adjust the gain resistors (Rf and Ri) to achieve the desired gain and frequency response.
  • The TPA2011D1YFFR can handle a maximum power of 2.65W per channel, assuming a 5V power supply and a 4Ω load impedance. However, this value may vary depending on the specific application and operating conditions.
  • To ensure EMC, follow proper PCB layout practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing signal trace lengths. Additionally, use shielding and filtering techniques to reduce electromagnetic interference (EMI).
  • The TPA2011D1YFFR has a thermal derating of 12.5mW/°C above 25°C. This means that the maximum power dissipation decreases by 12.5mW for every degree Celsius above 25°C.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TPA2011D1YFFR Overview

Use the download button to access the TPA2011D1YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA20, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments
