Texas Instruments provides a recommended PCB layout in the TPA2014D1RGPR datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, TI offers a PCB layout checklist and a thermal design guide to help ensure optimal performance.
The gain setting of the TPA2014D1RGPR depends on the specific requirements of your application. TI provides a gain setting calculator tool to help you determine the optimal gain setting based on your input signal level, output power, and impedance. You can also refer to the datasheet for general guidelines on gain setting selection.
The TPA2014D1RGPR is rated for a maximum output power of 2.5 W per channel. However, the actual power handling capability depends on the operating conditions, such as supply voltage, temperature, and load impedance. Be sure to check the datasheet for thermal and power derating guidelines to ensure safe operation.
To minimize EMI and RF interference, follow proper PCB layout and shielding techniques, such as using a ground plane, separating analog and digital signals, and using EMI filters. Additionally, ensure that the TPA2014D1RGPR is properly decoupled and bypassed, and consider using a shielded enclosure for your design.
The TPA2014D1RGPR is rated for operation over a temperature range of -40°C to 85°C. However, the device's performance and reliability may be affected at extreme temperatures. Be sure to check the datasheet for temperature-related specifications and guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA2014D1RGPR Overview

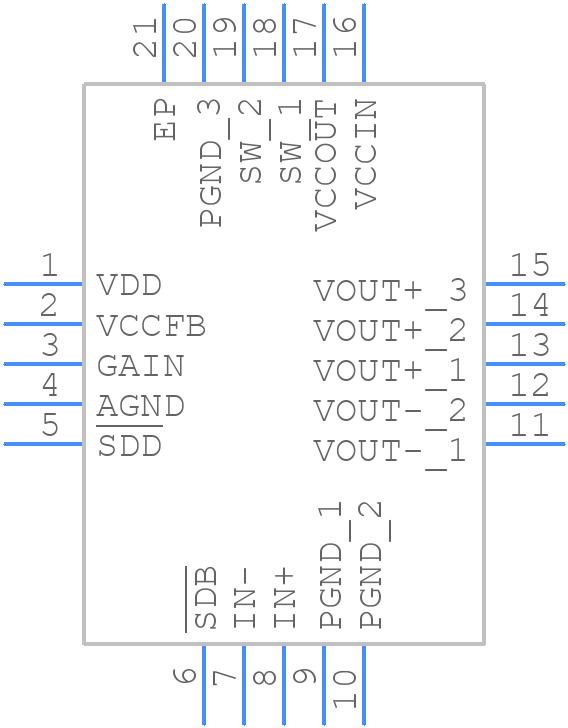

Use the download button to access the TPA2014D1RGPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA20,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
