TPA2016D2YZHR - Texas Instruments

Description: 2.8-W/Ch Stereo Class-D Audio Amplifier with SmartGainTM AGC/DRC (TPA2016)

Download TPA2016D2YZHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

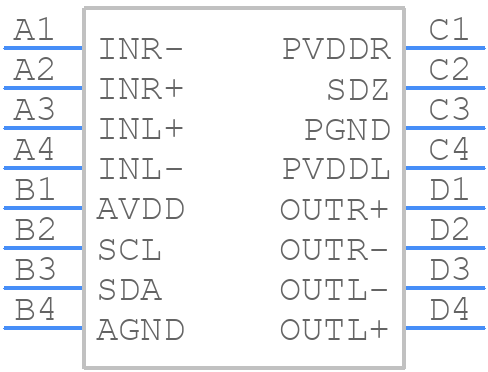

TPA2016D2YZHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA2016D2YZHR - Texas Instruments PCB footprint - BGA - BGA - YZH0016 1
click to zoom
3D Models
TPA2016D2YZHR - Texas Instruments - 3D model - BGA - YZH0016 1
click to zoom

TPA2016D2YZHR Details

  • Manufacturer Part Number:

    TPA2016D2YZHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    2.295 mm

  • Moisture Sensitivity Level:

    1

  • Noise Figure-Nom:

    95 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    2.8 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.625 mm

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.295 mm

TPA2016D2YZHR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPA2016D2YZHR evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management to minimize noise and ensure optimal performance.
  • The gain setting depends on the input signal level and the desired output power. The TPA2016D2YZHR has a gain range of 6 dB to 26 dB. Use the gain equation in the datasheet to calculate the required gain setting based on your input signal level and desired output power.
  • The maximum power dissipation of the TPA2016D2YZHR is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5 W at an ambient temperature of 25°C. However, this value can be derated based on the thermal resistance of the PCB and the ambient temperature.
  • The TPA2016D2YZHR has an internal overvoltage protection (OVP) circuit that protects the device from voltage transients up to 18 V. However, it is still recommended to use external voltage regulators and protection circuits to ensure that the device operates within the recommended voltage range of 4.5 V to 5.5 V.
  • The recommended input coupling capacitor value depends on the input signal frequency and the desired high-pass filter cutoff frequency. A general rule of thumb is to use a capacitor value of 1 μF to 10 μF, with a voltage rating of at least 10 V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA2016D2YZHR Overview

Use the download button to access the TPA2016D2YZHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA20, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
