Texas Instruments provides a recommended PCB layout in the TPA2025D1YZGT evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management to minimize noise and ensure optimal performance.
The input capacitor value depends on the input signal frequency and amplitude. A general rule of thumb is to choose a capacitor value that is at least 10 times the input impedance of the amplifier. For example, if the input impedance is 10kΩ, a 100nF capacitor would be a good starting point.
The maximum power dissipation of the TPA2025D1YZGT is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
To prevent oscillations and instability, ensure that the input and output circuits are properly decoupled, and the layout is designed to minimize parasitic inductance and capacitance. Additionally, adding a small resistor (e.g., 10Ω) in series with the input capacitor can help to dampen oscillations.
A recommended voltage supply decoupling scheme for the TPA2025D1YZGT is to use a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, both connected as close as possible to the device's power pins. This helps to filter out high-frequency noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA2025D1YZGT Overview

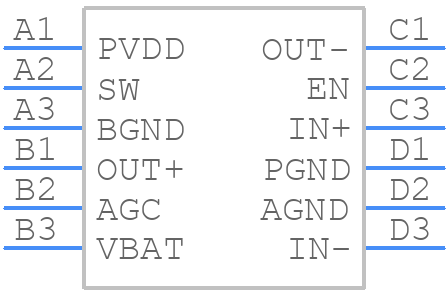

Use the download button to access the TPA2025D1YZGT schematic symbol, PCB footprint, and 3D model.
